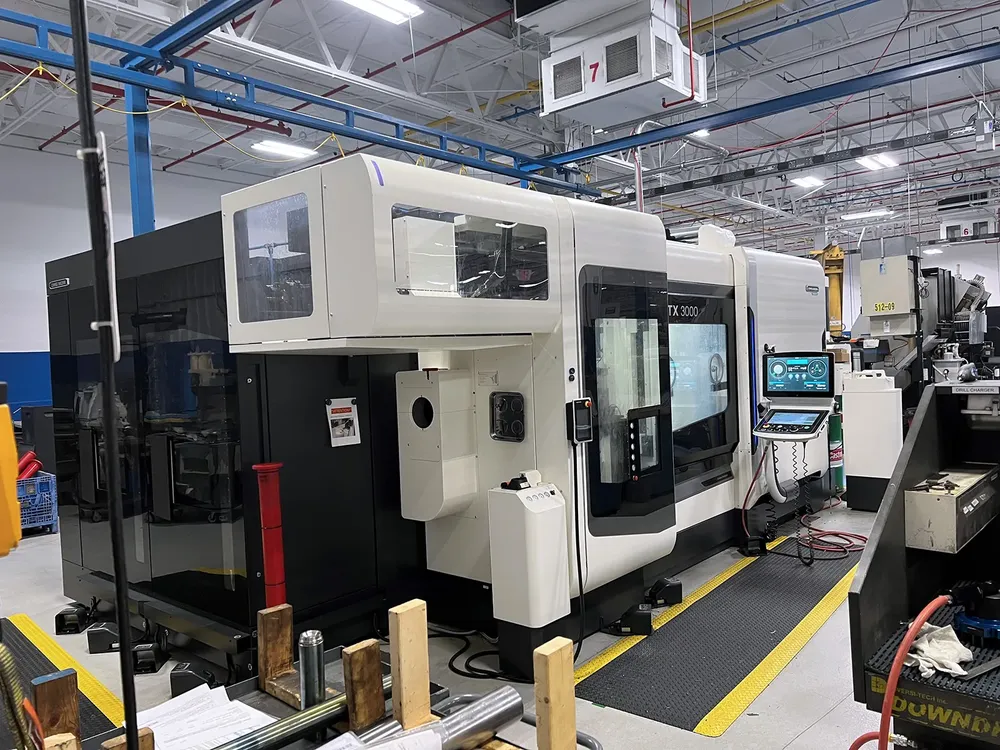

DMG CELOS F31iB5 3000 rpm MORI NTX 3000/1500 4 Axis

Max turning diameter 26.3 in
Max turning length 61 in
Swing over cross slide 27.6 in
X-axis travel 26.5 in
Y-axis travel ±5.9 in
Z-axis travel 60 in
B-axis rotation ±120° (240° total)
Main spindle chuck size 12 in
Main spindle max speed 3000 rpm
Main spindle power 48 hp
Sub spindle chuck size 8 in
Sub spindle max speed 4000 rpm
Sub spindle power 35 hp
Bar capacity main spindle 4.0 in
Bar capacity sub spindle 3.1 in
Control CELOS F31iB5
Tool changer capacity 246 positions
Capto C6 tool system
High pressure coolant system
Gantry loader/unloader system
Lower turret (static)
Synchronous 5-axis capability
