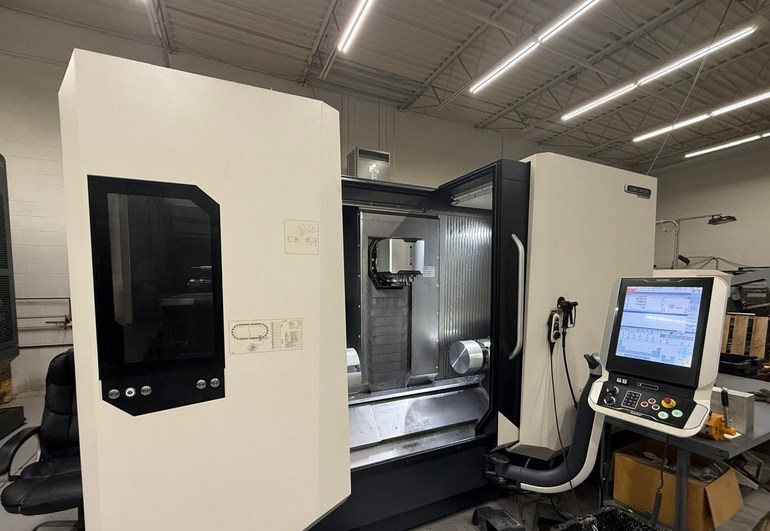

DMG Siemens 840D SLIMline Touchscreen 5,000 RPM MORI CLX-450TC 4 Axis

X Axis Travel: 29.53"
Y Axis Travel: 7.87"
Z Axis Travel: 43.3"
B Axis Travel: 47.24"
Rapid Traverse (X/Y/Z): 40 m/min
B Axis Head Tilt: +/- 120°
C Axis Index: 0.001°
CNC Control: Siemens 840D SLIMline Touchscreen
Chip Conveyor
Coolant Tank & Pump
Renishaw Probing
Tool Breakage Monitoring
Machine Protection Control
Easy Tool Monitor 2.0
Coolant Thru Spindle
Bar Capacity: 2.6"
Swing: 19.68"
Turning Diameter: 15.74"
Max Turning Length: 43.3"
Center Distance: 56.4"
Spindle Nose: A2-8
Spindle Speed: 5,000 RPM
Main Motor: 23 HP
Sub Spindle
Sub Spindle Chuck: 8"
Sub Spindle Bar Capacity: 2.6"
Sub Spindle Nose: A2-8
Sub Spindle Speed: 5,000 RPM
Sub Spindle Motor: 23 HP
Milling Spindle Taper: HSK-A63
Milling Spindle Speed: 12,000 RPM
Milling Motor: 14 HP
Chuck Size: 8"
Tool Changer Capacity: 60 Stations
7 Axis
Y Axis
Live Tooling
Machine Dimensions: 154" x 107" x 100"
Machine Weight: 21,000 lbs
