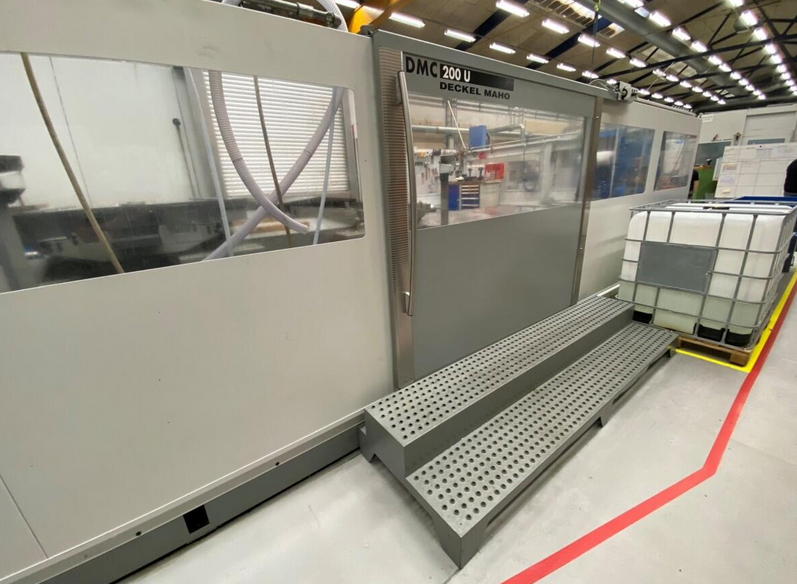

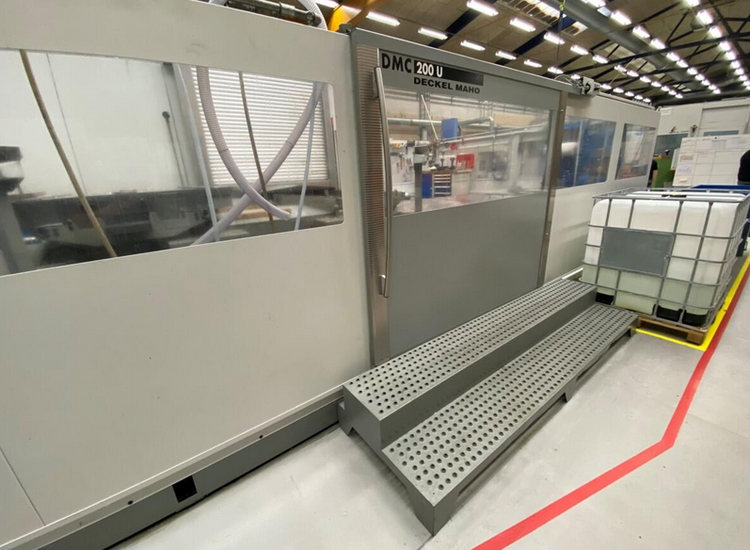

DMG DMC 200 U 5 Axis

X-axis travel: 1800 mm
Y-axis travel: 2000 mm
Z-axis travel: 1100 mm
B-axis: -7° / +187°
C-axis: 360°
Feedrate (X/Y/Z): 0.02–10 m/min
Rapid traverse (X/Y/Z): 60 / 40 / 40 m/min
Number of controlled axes: 5
Control: Heidenhain iTNC 530
Spindle speed: 18,000 rpm
Spindle motor power: 28 / 19 kW
Spindle torque: 121 Nm
Tool holder: HSK 63
Tool changer: 120 tools
Maximum tool diameter: 110 / 230 mm
Number of pallets: 2
Pallet size: 1600 × 1400 mm
Maximum table load: 3500 kg
Chip conveyor: included
Measuring probe: Heidenhain TS 641
Internal coolant pressure: 40 bar
Coolant tank capacity: 900 L
Electronic handwheel: included
Paper band filter: included
Tool break control: Blum Laser
