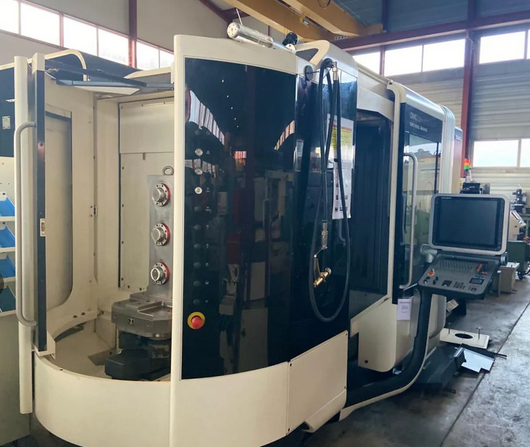

DMG DMC 55H duoBLOCK 4 Axis

Control: HEIDENHAIN iTNC 530
Number of Axes: 4

X-Axis Travel: 560 mm
Y-Axis Travel: 600 mm
Z-Axis Travel: 600 mm

Table Diameter: Ø630 mm
Workpiece Height: 850 mm
Table Load Max: 500 kg
Table Speed: 40 rpm
Table Indexing (B Axis): 360°

Pallet Size: 400 x 400 mm
Pallet Change System
Pallet Stations: 60 (3x20)

Spindle Taper: HSK 63 DIN 69893 Form A
Spindle Diameter: 225 mm
Spindle Speed: 0 - 12000 rpm
Spindle Power: 20 kW
Spindle Torque Max: 1550 Nm

Feed Range: 0 - 60000 mm/min
Rapid Traverse Speed: 60 m/min
Max Feed Force: 10 N

Tool Magazine Capacity: 120 tools
Max Tool Diameter: 80 mm
Max Tool Diameter (adjacent free pockets): 160 mm
Max Tool Length: 400 mm
Max Tool Weight: 12 kg

Coolant Through Spindle: 40 bar
Chip Conveyor
KUKA Loading Robot
Probe System
Rotating Viewing Window
Switch Cabinet Air Conditioner
Spindle Replacement: 2017

Machine Weight: 9700 kg
Machine Dimensions: 5000 x 2700 x 2700 mm
