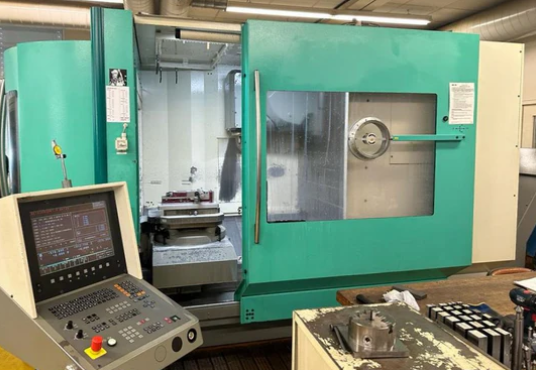

DMG DMC 60 U 5 Axis

X-axis travel: 600 mm
Y-axis travel: 700 mm
Z-axis travel: 550 mm
Control: HEIDENHAIN 430
Table length: 630 mm
Table width: 500 mm
Centering bore diameter: 50 mm
Maximum table load: 600 kg
Spindle taper: SK40 DIN 69871
Spindle speed range: 20–12000 rpm
Feedrate range: 1–10000 mm/min
Tool magazine capacity: 60 tools
Maximum tool diameter: 100 mm
Maximum tool diameter with free adjacent pockets: 160 mm
Maximum tool length: 350 mm
Maximum tool weight: 10 kg
Machine weight: approx. 9500 kg
Machine length: 3902 mm
Machine width: 2687 mm
Machine height: 2484 mm

Features / options / equipment
Coolant system
Coolant through spindle 17 bar
Pallet changing system
Number of pallets: 2
Pallet length: 500 mm
Pallet width: 500 mm
Maximum pallet load: 600 kg
Machine lamp
Rotating viewing window
