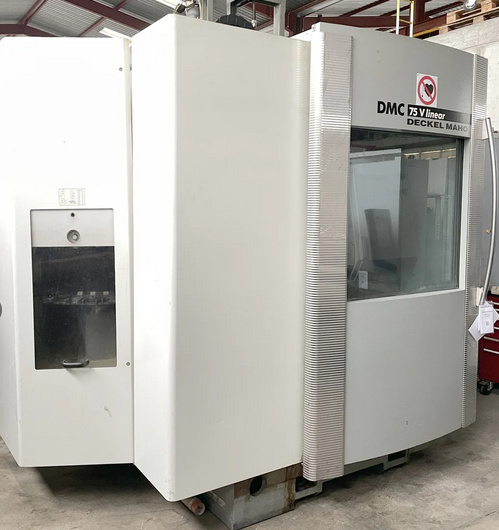

DMG DMC 75 V linear 5 Axis

X Axis Travel: 885 mm
Y Axis Travel: 600 mm
Z Axis Travel: 600 mm
Rapid Traverse: 90 m/min
B Axis Swivel Range: +10° / −110°
C Axis Rotation: 360°
CNC Control: Heidenhain iTNC 530
Table Load Max.: 600 kg
Table Speed: 100 t/min
Spindle Speed Range: 0–28000 rpm
Spindle Power: 55 / 43.5 kW
Spindle Interface: HSK-A63
Tool Magazine Capacity: 60 positions
Tool Diameter Max.: 40 mm
Tool Length Max.: 300 mm
Air Connection: 6 bar
Power Supply: 400 V / 50 Hz / 3-phase
Machine Weight Approx.: 11000 kg
Machine Length: 3255 mm
Machine Width: 2450 mm
Machine Height: 3150 mm

High-pressure coolant system 60 bar
Chip conveyor
Electronic handwheel
