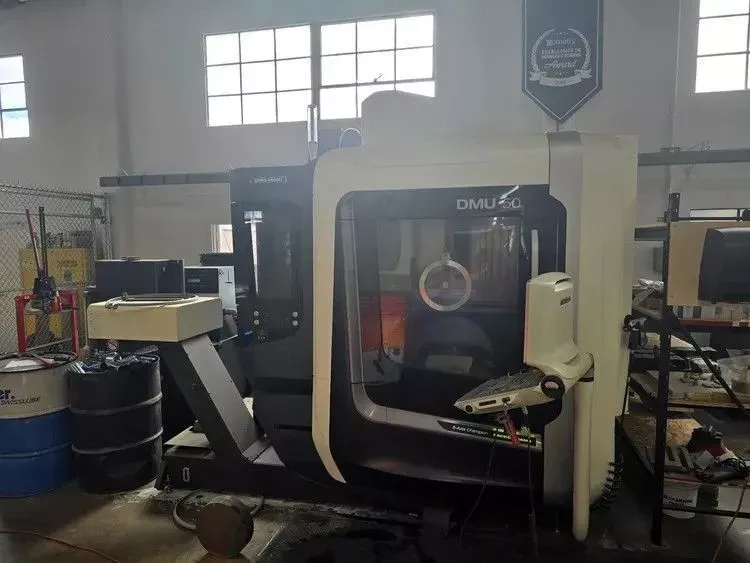

DMG DMU 50 GEN III 5 Axis

X-axis travel: 25.6"
Y-axis travel: 20.4"
Z-axis travel: 18.7"
A-axis travel: -5° to +110°
C-axis travel: 360°

Control: CELOS Siemens 840D CNC color control
Table length: 24.8"
Table width: 19.6"
Table load capacity: 660 lb
Spindle nose to table distance: 5.9"–24.6"
Spindle speed: 20,000 RPM
Spindle motor: 28 hp
Spindle taper: 63
Automatic tool changer: 60 tools
Tool diameter: 3.14"–5.11"
Tool length: 11.8"
Tool weight: 13.2 lb
Rapid traverse rate X/Y/Z: 1,654 in/min
Machine weight: 11,500 lb

Chip conveyor
Handheld remote pulse generator
Spray gun for swarf removal
Air blast through spindle center
Coolant through spindle 40 bar
Tool length laser measurement touch probe
Infrared measuring probe PP60 optical
3D Quickset
MPC, Profibus
Rotating clear view window
Programmable roof opening by M-code
Linear scales on all axes
Cooled ball screws
Two cooled table bearings B & C axis
Cooled motor spindle
