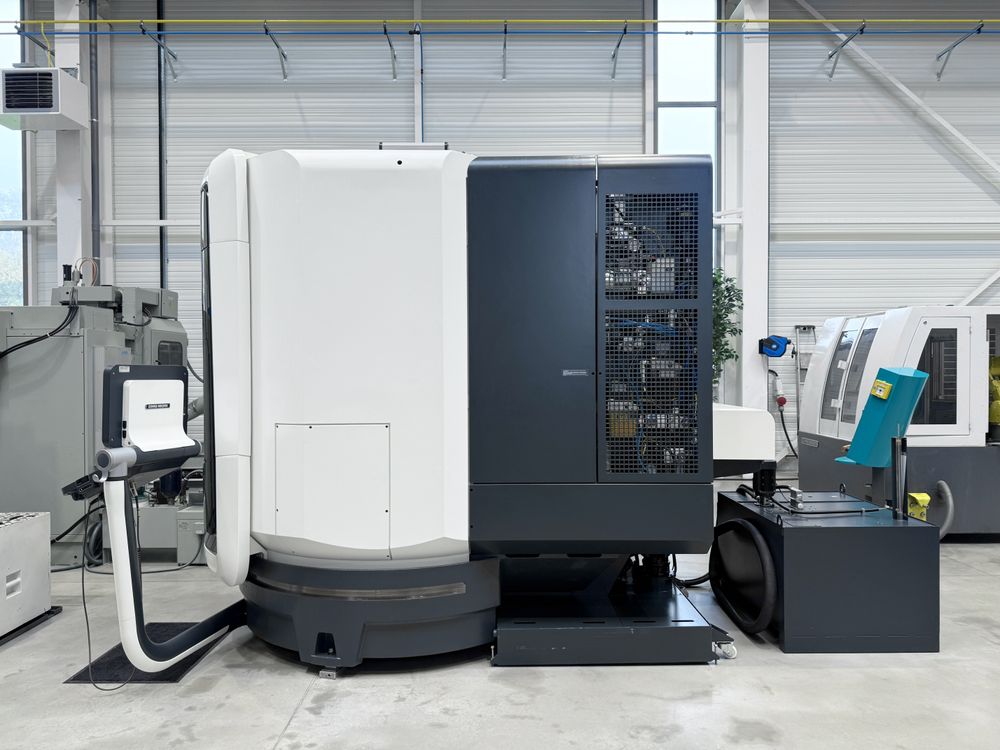

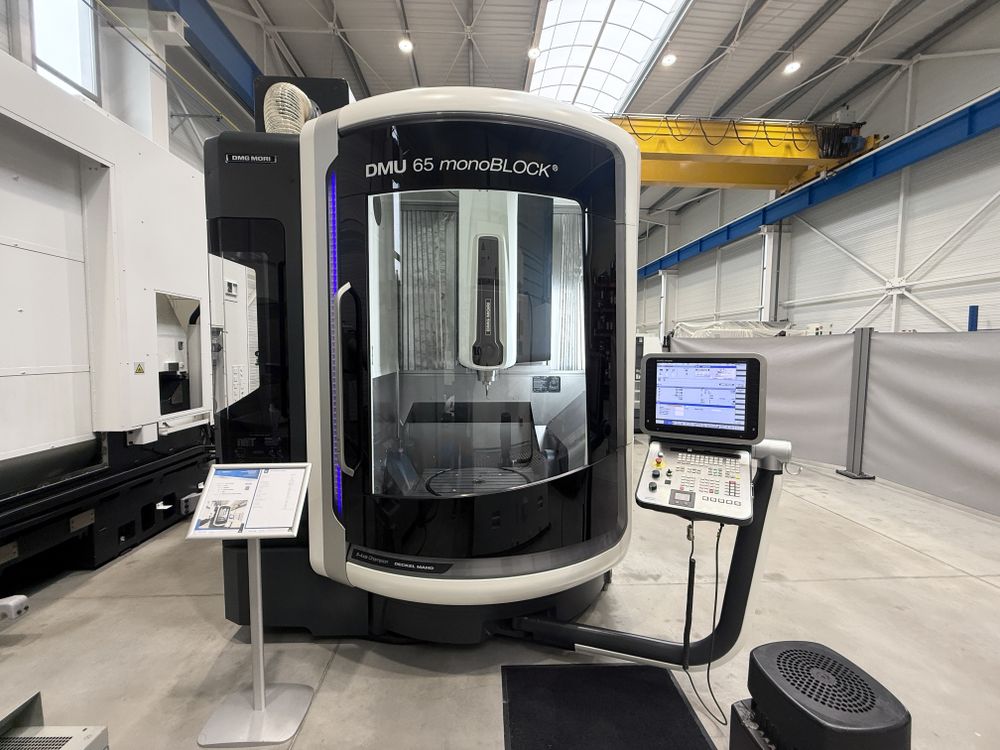

DMG DMU 65 monoBLOCK 5

CNC Machining centre DMG MORI DMU65 monoBLOCK



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2016

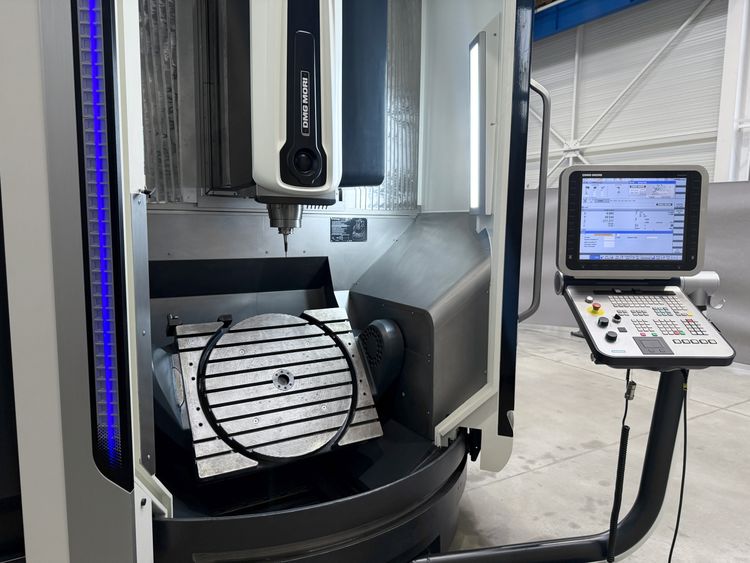

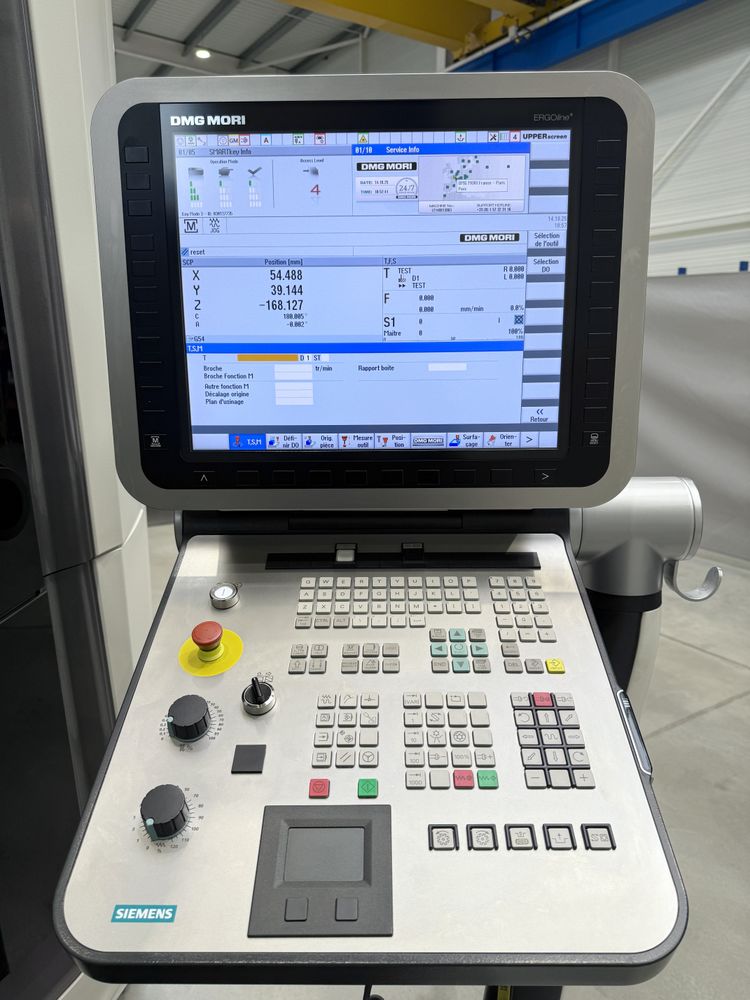

CNC control: SIEMENS 840D SL
Number of simultaneous axes: 5
Stroke X axis: 735 [mm]
Stroke Y axis: 650 [mm]
Stroke Z axis: 560 [mm]
Working feed X axis: 40000 [mm/min]
Working feed Y axis: 40000 [mm/min]
Working feed Z axis: 40000 [mm/min]
Traversing feeds X, Y and Z axes: 40000 [mm/min]
Axes acceleration: 6 [m/s²]
X axis ball screws Ø: 40 [mm]
Y axis ball screws Ø: 50 [mm]
Z axis ball screws Ø: 40 [mm]

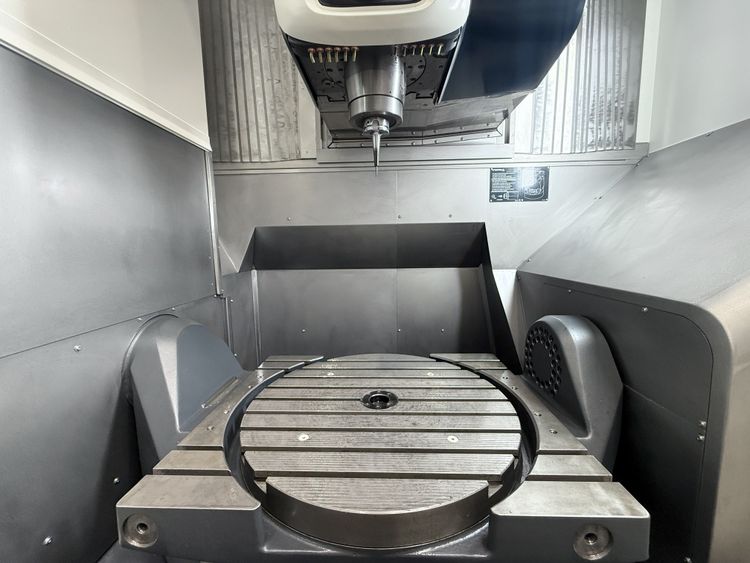

Table length: 800 [mm]
Table width: 650 [mm]
Max. load on table: 600 [Kg]
Table surface Ø: 650 [mm]

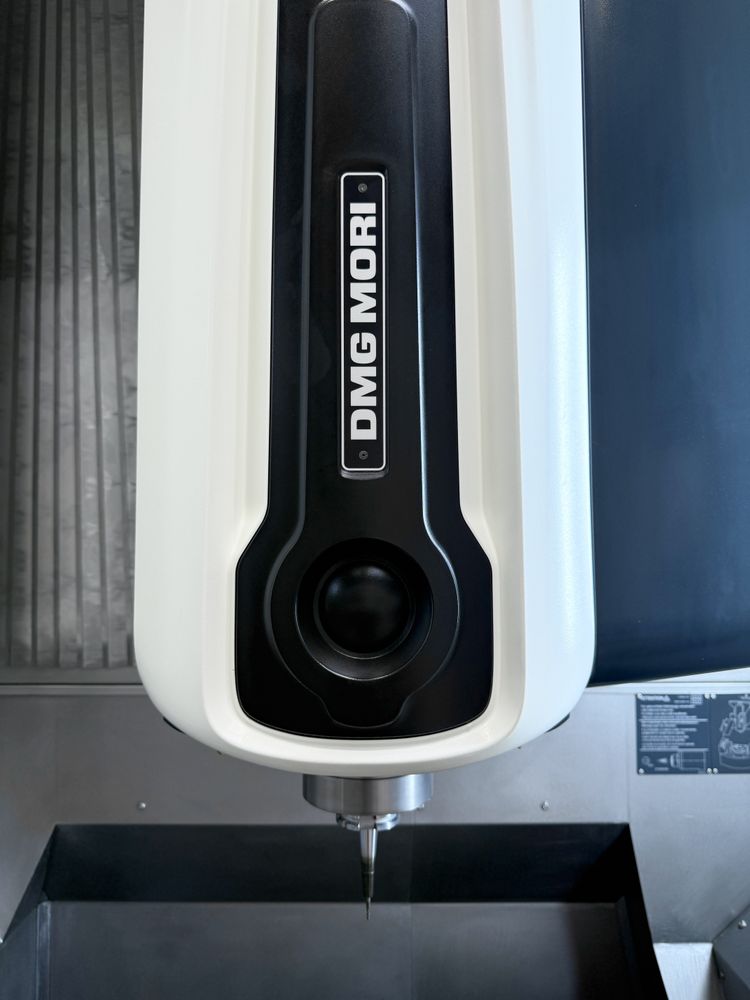

Spindle type: HSK-A63
Max. spindle speed: 24000 [rpm]

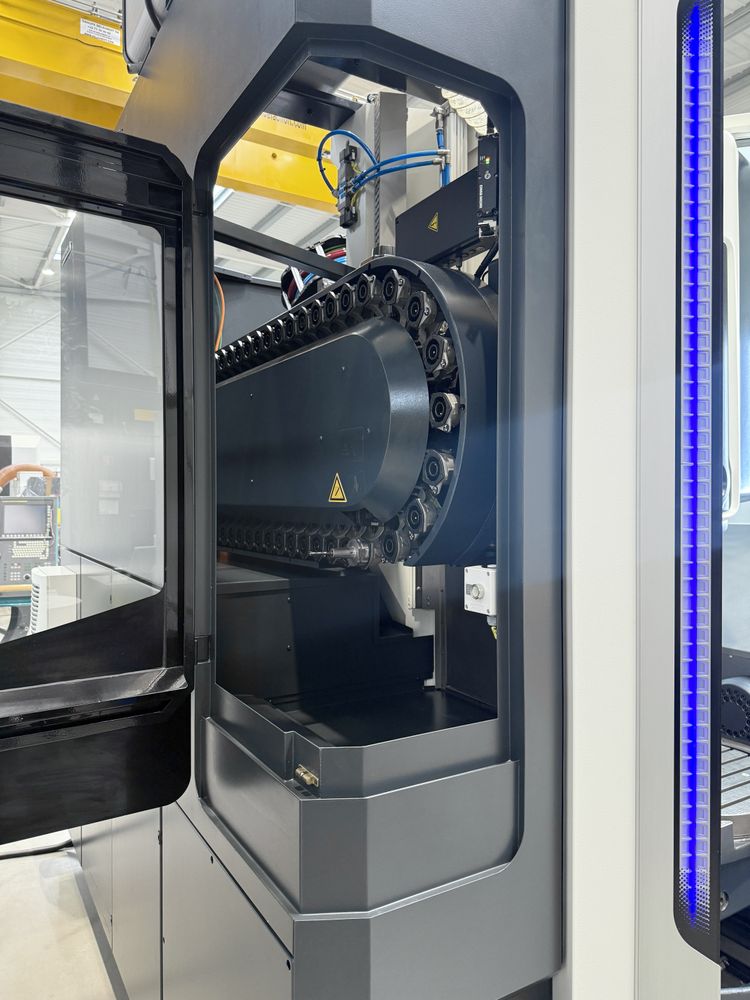

Tool changer magazin number of stations: 60
Max. tool length: 315 [mm]
Max. weight of single tool: 8 [Kg]
Max. tool diameter: 160 [mm]
Supply voltage: 400 [V]
Number of hours under power: 41379 [h]
Number of running hours: 15065 [h]
Weight: 11900 [Kg]


INCLUDED EQUIPMENT:

x71 HSK-A63 tool holders
x1 DMG MORI PowerProbe 60 optical part probe

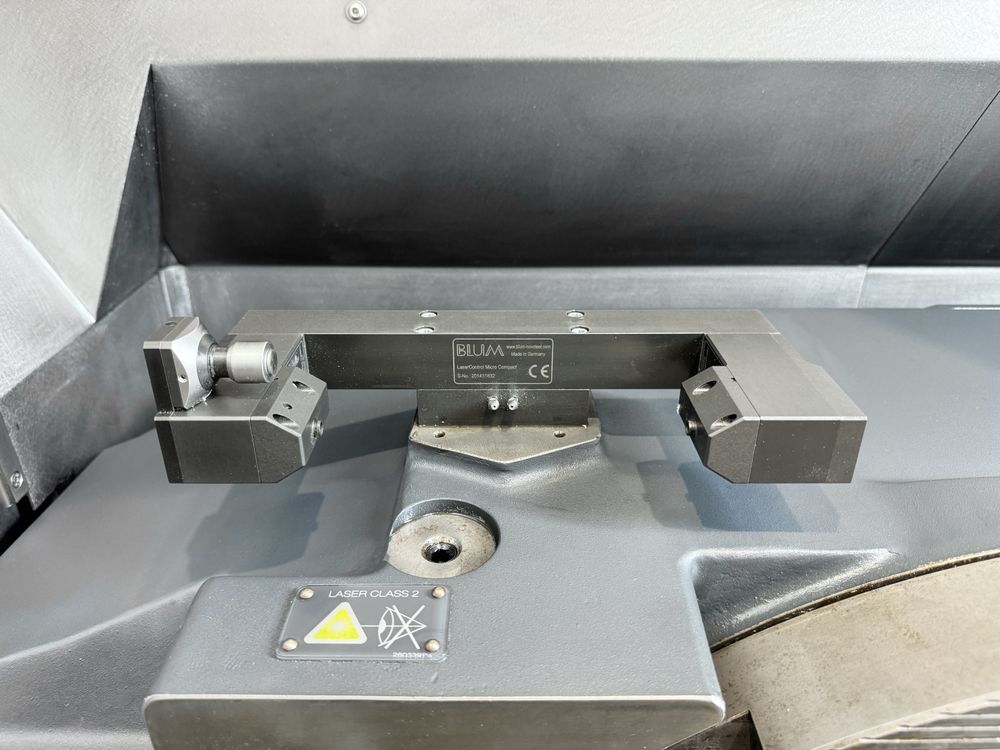

x1 BLUM laser system for tool setting and tool breakage detection
x1 set of measuring glass scales on all linear axes with air supply
x1 remote electronic handwheel

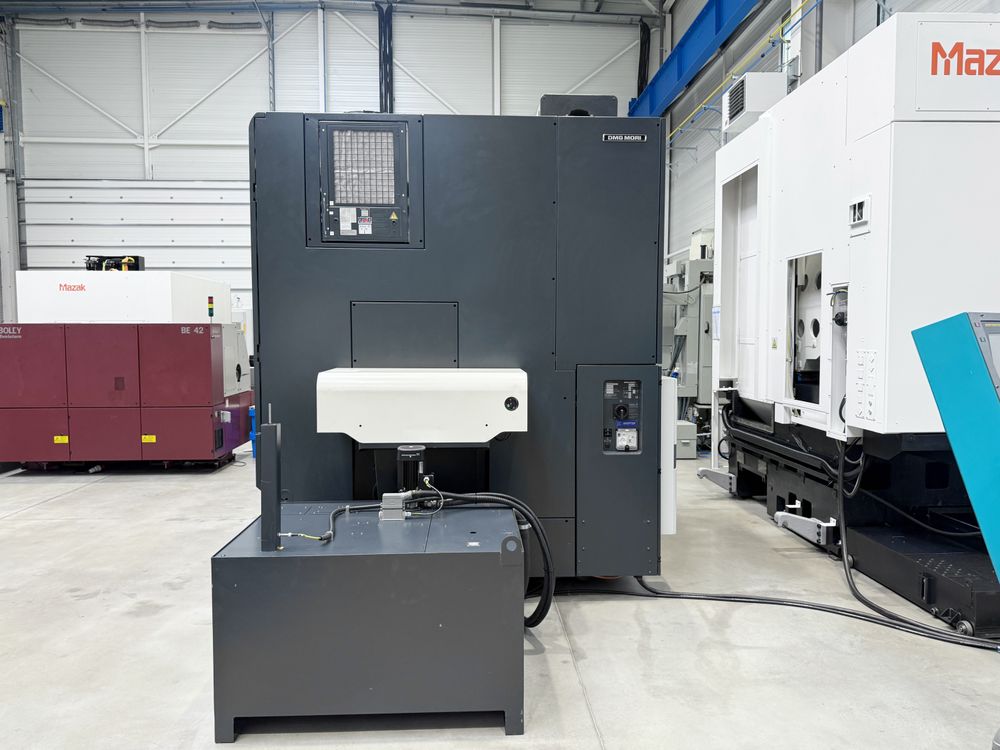

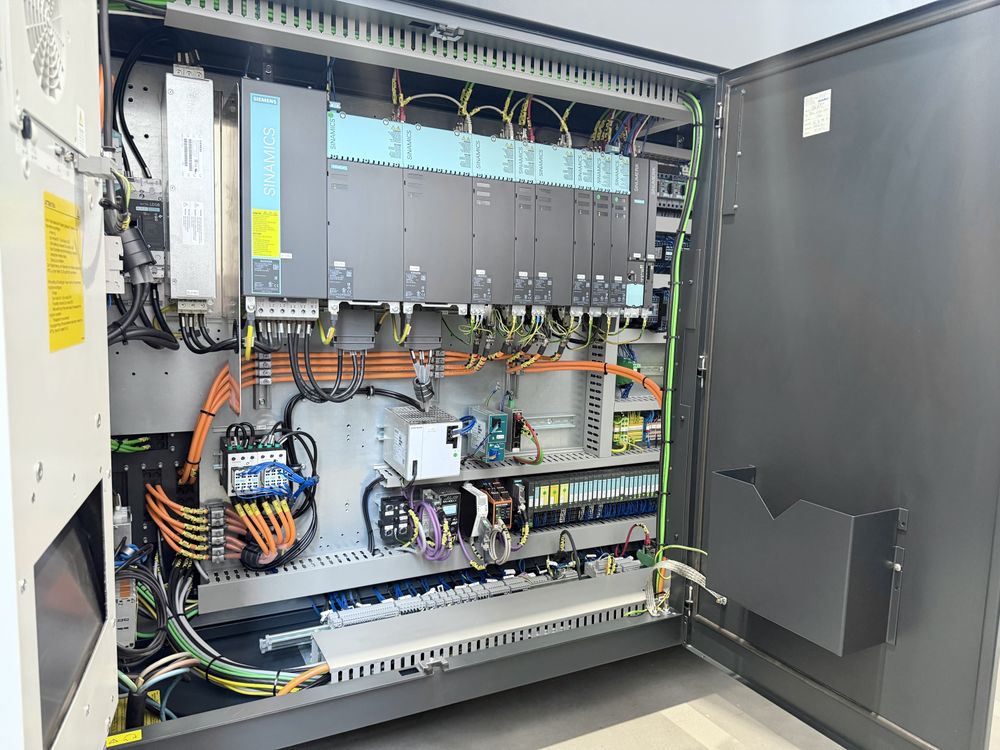

x1 electrical cabinet air conditioning unit
x1 MICRONFILTER KUBE 2500 mist extraction system
x1 chip conveyor
x1 spindle chiller



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.
