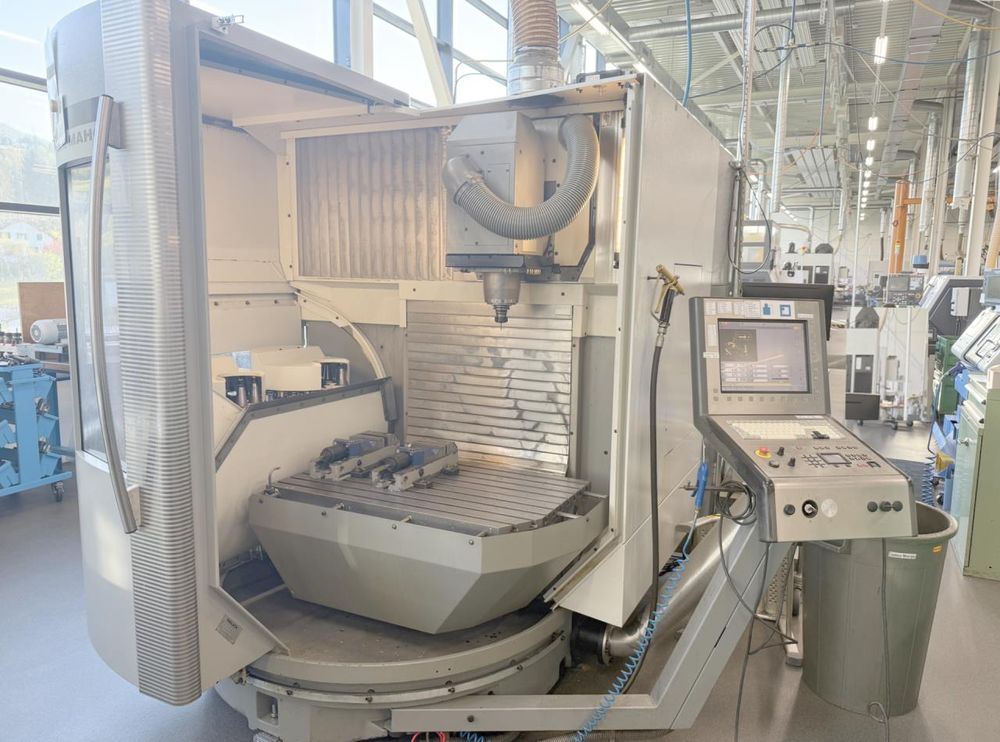

DMG DMU 60 T 5 Axis

DMG DMU 60 T
Controller :HEIDENHAIN
2002

Number of axis total 3
Table length1000 mm
Table width600 mm
Number of T-channels9
Distance of the T-slots63 mm
T-channel width14H7 mm
Table load max.400 kg
Longitudinal travel (X-axis)630 mm
Transversal travel (y-axis)560 mm
Vertical travel (z axis)560 mm
Table load max.350 kg

Tool changer:
Number of tools20
Tool diameter80 mm
Diameter with free adjacent pockets130 mm
Tool lenght315 mm
Max. tool-weight8 kg

Spindle nose SK40 DIN 69871
Vertical spindle speeds:12000 rpm
Feed range20 - 10000 mm/min
Rapid traverse: long.26 m/min
Rapid traverse: transversal26 m/min
Rapid traverse: vertical20 m/min
Vertical quill travel90 mm
Voltage 50 Hz 3x400 Volt
Spindle motor7.5 kW
Total power required26 kVA
Machine's weight about6500 kg

Overall dimensions machine:
Length2880 mm
Width2135 mm
Height2827 mm

Various accessories:
Lamp
RS-232 Interface
