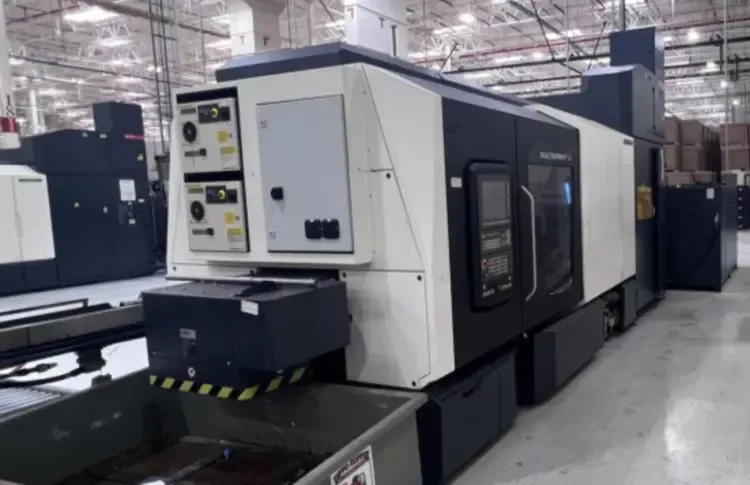

DMG Fanuc 30i-B 7,500 RPM MORI Multisprint 36 2 Axis

Max bar capacity: 1.41″ (36 mm)
Max bar feed: 3.93″
Max bar feed with SWISSTYPE kit: 7.08″
Number of work spindles: 6
Spindle pitch circle diameter: 14.96″
Max spindle speed: 7,500 RPM
Spindle power: 20 HP
Bar max length: 0.13″
Bar min loading length: 0.09″
Number of units (cross slides with X–Y axes): 6
X-axis max travel Pos.1–6: 1.96″
Y-axis max travel Pos.1–6: ±1.96″
Main spindles Z-slides: 6 slides
Z-axis travel: 3.93″
Z-axis max travel with SWISSTYPE kit: 7.08″
Machine weight: 33,000 lbs
Machine dimensions: 401.57″ × 84.65″
Control: Fanuc 30i-B
Equipped with high pressure coolant
Equipped with chip conveyor, hinged type
Equipped with oil mist collector for oil/emulsion
Tool-holder block with no.3 quick-change junctions
Motor drive for tool-holders 8,000 rpm
Chiller system for machine & high pressure device
Collet applicators Hainbuch TOPlus 40 w/o axial movement ×6
Manual collet replacement device Hainbuch TOPlus 40
Clamping collet type Hainbuch TOPlus 40 max d.36 ×12
Drill/boring-holder Ø25 mm pos.TH02 main spindles
Tool-holder ext. for KM32 for main spindles ×8
Drill/boring-holder Ø25 mm pos.TH03 main spindles
Radial driven unit 3,900 rpm, Ø16, ext. cooling
G-interface for blank loading device
Transformer
DMG MORI SMARTkey – turning package (4 keys)
Set of 2 Fanuc robots in working area for workpiece loading/unloading
Set of 2 axial rolling head FETTE type with 2 sets of rollers, pneumatic device for mechanical reloading
Special device for part feeding, assembled on slide, complete with arm and adaptor
Adaptor for presetting outside the machine
G-interface for blank loading device, including signal and blank handling in the machine
Other available tooling
