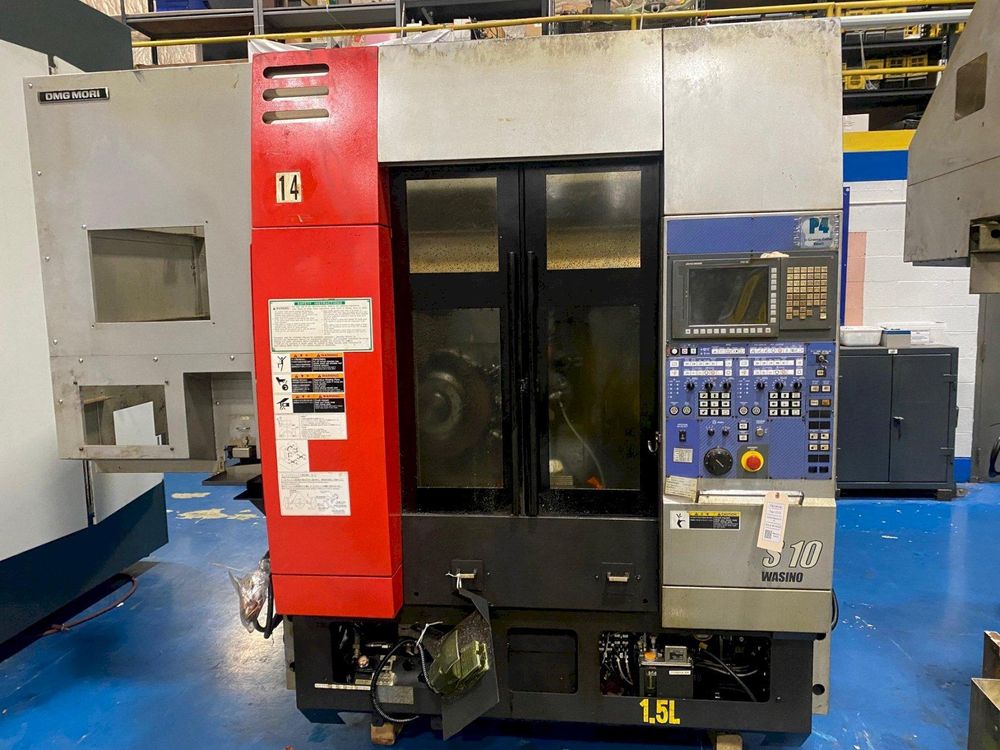

DMG Fanuc 31i-Model B 5,000 rpm MORI S-10 8 Axis

X-axis travel: 5.91″
X2-axis travel: 5.91″
Z-axis travel: 13.39″
Z2-axis travel: 13.39″
Y-axis travel (right side): 4.92″
Y-axis travel (left side): 4.92″
C-axis index: 0.001°
Rapid traverse (X): 995 ipm
Rapid traverse (Z): 1,260 ipm

Control: Fanuc 31i-Model B
Axes: 8
Tailstock
Y-axis
Live tooling
Live tooling speed: 6,000 rpm
Live tooling motor: 6 hp

Swing: 12.2″
Turning diameter: 10.24″
Center distance: 10.63″

Spindle speed: 5,000 rpm
Main motor: 20 hp

Chuck size: 6″
Turret capacity: 2 × 12 station turrets

Machine dimensions: 66.9″ × 78.7″ × 80″
Machine weight: 12,500 lbs

Gantry loader system
Howa H3YS6 sealed compensating power chuck
Remote handwheel
