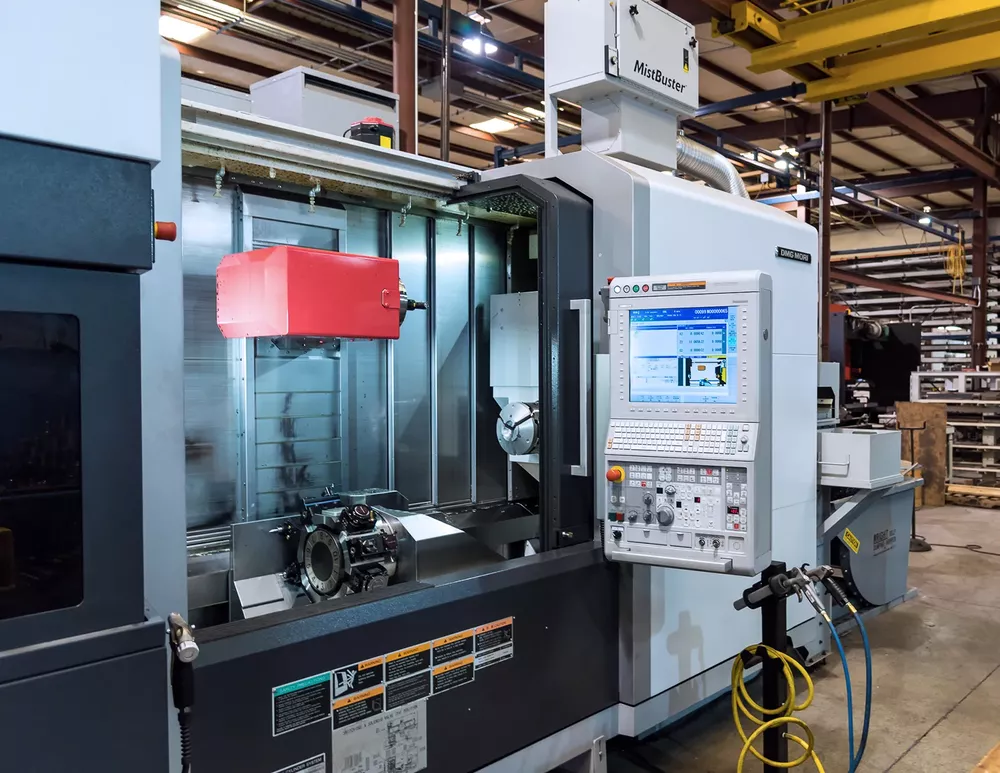

DMG Fanuc 31iB5 5000 RPM MORI NTX 2000/1500SZM 8 Axis

X1 axis travel: 26.5"
Y1 axis travel: 11.8"
Z1 axis travel: 61.4"
X2 axis travel: 8.8"
Z2 axis travel: 60.7"
B-axis travel: 240°
C1 axis travel: 0.001°
C2 axis travel: 0.001°
Control: Fanuc 31iB5
Bar capacity: 2.5"
Max swing: 5.9"
Max turning diameter: 24"
Max turning length: 60.5"
Main spindle speed: 5000 RPM
Sub spindle speed: 5000 RPM
B-axis milling head speed: 12000 RPM
B-axis spindle taper: Capto C6
Main chuck size: 8"
Sub spindle chuck size: 8"
Lower turret live tool stations: 10
Tool magazine capacity: 76 positions
Interface for bar feeder
Renishaw probe
Mist collector
Rigid tapping
High pressure coolant system: 1000 PSI
Chip conveyor
Automatic parts unloader on sub-spindle
