DMG Fanuc 31iB5 CNC control 5,000 Mori NTX-2000SZM/1500 6 Axis

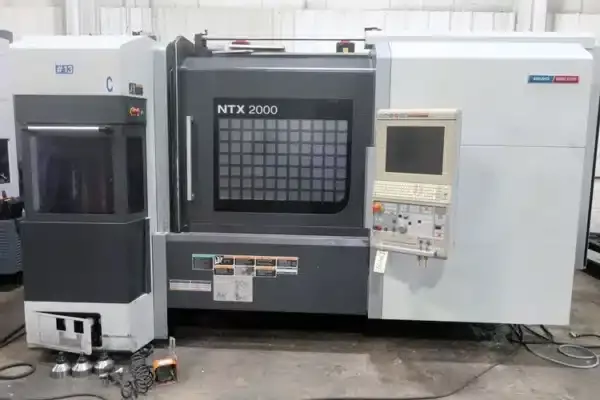

DMG Mori NTX-2000SZM/1500
2014

Maximum workpiece swing diameter mm (in.) 660 (25.9)
Swing over cross slide:
– Standard mm (in.) 660 (25.9)
– Turret 2 mm (in.) 300 (11.8)
Maximum turning diameter:
– Standard mm (in.) 610 (24.0)
– B-axis 90 mm (in.) 660 (25.9)
– Turret 2 mm (in.) 274 (10.7)
Maximum turning length mm (in.) 1,540 (60.6)

Travel
X-axis mm (in.) 495 (19.5 )
Y-axis mm (in.) ?125 (?4.9)
Z-axis mm (in.) 1,560 (61.4) +215 (8.5)
B-axis 120
X2-axis mm (in.) 160 (6.3)
Z2-axis mm (in.) 1,402 (55.2)

Spindle 1
Maximum spindle speed:
– Standard min-1 5,000
– For 80 mm (3.1 in.) bar work capacity specifications min-1 [4,000]
Number of spindle speed ranges 1
Type of spindle nose:
– Standard A2-6
– For 80 mm (3.1 in.) bar work capacity specifications [A2-8]
Through-spindle hole diameter:
– Standard mm (in.) 73 (2.9)
Minimum spindle indexing increment 0.0001
Spindle bearing inner diameter:
– Standard mm (in.) 120 (4.7)
– For 80 mm (?3.1 in.) bar work capacity specifications mm (in.) [140 (?5.5)]
Spindle torque :
– Standard Nm (ftlbf) 230/178/159
(169.6/131.3/117.3)
– High-torque Nm (ftlbf) [358/231/214
(264.0/170.4/157.8)]

Spindle 2
Maximum spindle speed min-1 5,000
Number of spindle speed ranges 1
Type of spindle nose A2-6
Through-spindle hole diameter mm (in.) 73 (2.9)
Minimum spindle indexing increment 0.0001
Spindle bearing inner diameter mm (in.) ?120 (?4.7)
Spindle torque Nm (ftlbf) 230/178/159
(169.6/131.3/117.3)
Tool spindle

Number of tool stations 1
Minimum B-axis indexing increment 0.0001
Maximum tool spindle speed min-1 12,000
Taper hole of rotary tool spindle Capto C6 [BT40]
[CAT40] [HSK-A63]
[KM-63]
Type of retention knob DMG MORI SEIKI 90

Inner diameter of rotary tool spindle bearing mm (in.) 70 (2.7)
Tool storage capacity 38 [76]
Maximum tool diameter mm (in.) 70 (2.7)
Maximum tool diameter mm (in.) 125 (4.9)
Maximum tool length mm (in.) 300 (11.8)
Maximum tool mass kg (lb.) 8 (17.6) [10 (22)]
Tool changing time sec 1.25
Spindle torque Nm (ftlbf) 120/44 (88.5/32.5)

Turret 2
Number of tool stations 10
Turret Indexing time sec 0.19
Shank height for square tool mm (in.) 20 (0.8)
Diameter of boring bar shank part mm (in.) Max. 32 (1.2)
Live tooling on turret

Feedrate
Rapid traverse rate:
– X-axis mm/min
(ipm) 40,000 (1,574.8)
– Y-axis mm/min
(ipm) 40,000 (1,574.8)
– Z-axis mm/min
(ipm) 40,000 (1,574.8)
– X2-axis mm/min
(ipm) 30,000 (1,181.1)
– Z2-axis mm/min
(ipm) 38,000 (1,496.1)
– A-axis mm/min
(ipm) 30,000 (1,181.1)
Motors

Spindle 1 drive motor kW (HP) 22/18.5 (30/24.7)
Spindle 2 drive motor kW (HP) 22/18.5 (30/24.7)
Tool spindle drive motor kW (HP) 18.5/11 (24.7/15)

Power Sources
Electrical power supply kVA 79.9
Compressed air supply MPa (psi), L/min (gpm) 0.5 (72.5), 650 (171.6)
Tank Capacity
Coolant tank capacity L (gal.) 675 (178.2)
Machine Size
Machine height mm (in.) 2,621 (103.2)
Floor space mm (in.) 4,080 x 2,980
(160.6 x 117.3)
Mass of machine:
– Tool storage capacity: 38 tools kg (lb.) 15,270 (33,594)
– Tool storage capacity: 76 tools kg (lb.) [15,780 (34,716)]

Equipped With
Fanuc 31iB5 CNC control
Main and Sub Spindle
Milling Spindle 12,000 RPM
Lower turret with Live tooling
coolant system
chip conveyor
(2) Kitagawa N08 Chucks (Non Thru)
**Note: This machine is equipped with Non-Through Hole Chuck Packages
