DMG Fanuc F31iB5 with CELOS 5000 RPM Mori NTX 1000 7 Axis

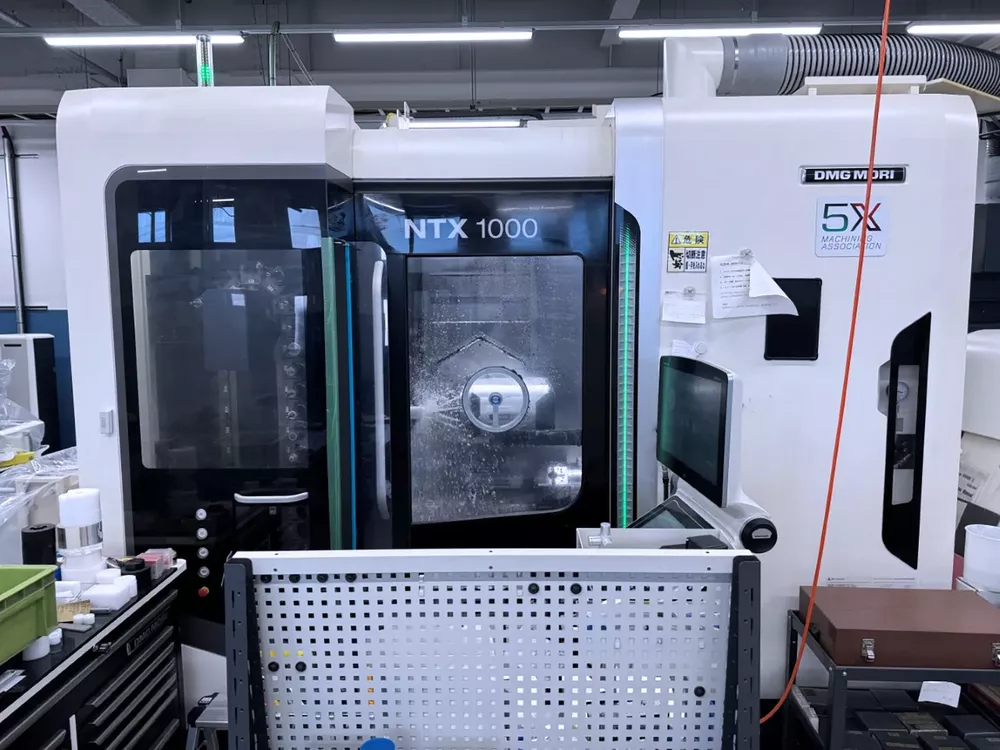

DMG Mori NTX 1000
Year: 2019

Max turning diameter: 16.9″
Max turning length: 31.5″
Max bar capacity: 2.6″
Swing over cross slide: 17.7″
Distance between spindles: 41.3″
X1-axis travel: 17.9″
Y-axis travel: ±4.53″
Z1-axis travel: 31.4″
X2-axis travel: 6.2″
Z2-axis travel: 28.7″
B-axis travel: 240°
C-axis rotation: 360° (0.001°)
X rapid traverse: 1574.8 IPM
Y rapid traverse: 1574.8 IPM
Z rapid traverse: 1968.5 IPM
Main spindle nose: A2-6
Main spindle bore: 2.5″
Main spindle speed: 5000 RPM
Main spindle motor: 15 HP
Main spindle chuck: 8″
Sub spindle nose: A2-6
Sub spindle bore: 2.0″
Sub spindle speed: 6000 RPM
Sub spindle motor: 15 HP
Sub spindle chuck: 6″
Milling spindle taper: Capto C5
Milling spindle max speed: 20000 RPM
Tool storage capacity: 8 tools
Lower turret capacity: 10 tools
Lower turret max milling speed: 10000 RPM
Overall dimensions: 178.5″ x 100.1″ x 101.8″
Weight: 25353 lbs

Control: Fanuc F31iB5 with CELOS
B-axis milling head 20000 RPM
38-station tool magazine
Full C-axis on main and sub-spindle
Y-axis capability
8″ main chuck
6″ sub spindle chuck
10-station live tool lower turret
Bar feeder interface
Renishaw probe
Blum laser tool setter/monitor
3D Quick SET
Mist collector
Rigid tapping
High pressure coolant system
Chip conveyor
LNS Chip Blaster
Automatic lubrication system
Tool holders included
