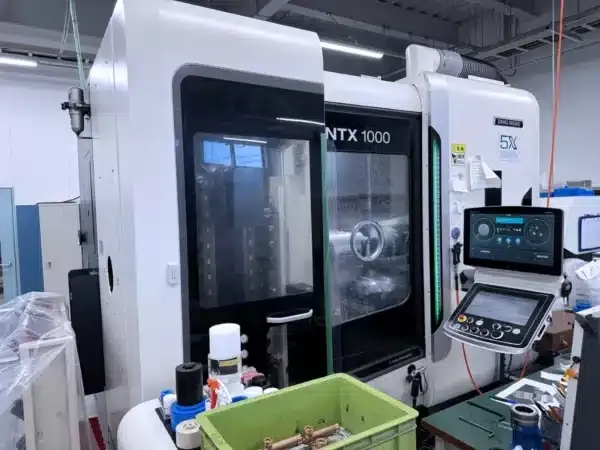

DMG Fanuc F31iB5 with CELOS CNC Control 20,000 RPM Mori NTX-1000 7 Axis

X1-Axis Travel 17.9″
Y-Axis Travel +/- 4.53″
Z1-Axis Travel 31.4″
X2-Axis Travel 6.2″
Z2-Axis Travel 28.7″
B-Axis Travel 240°
C-Axis 360° (0.001)

X Rapid Traverse Rate 1574.8 IPM
Y Rapid Traverse Rate 1574.8 IPM
Z Rapid Traverse Rate 1968.5 IPM

Max Turning Diameter 16.9″
Max Turning Length 31.5″
Max Bar Capacity 2.6″
Swing Over Cross Slide 17.7″
Distance Between Spindles 41.3″

Main Spindle Nose A2-6
Main Spindle Bore 2.5″
Main Spindle Speed 5000 RPM
Main Spindle Motor 15 HP
Main Spindle Chuck 8″

Sub Spindle Nose A2-6
Sub Spindle Bore 2.0″
Sub Spindle Speed 6000 RPM
Sub Spindle Motor 15 HP
Sub Spindle Chuck 6″

Milling Spindle Taper Capto C5
Milling Spindle Max Speed 20,000 RPM
Tool Storage Capacity 38 Tools
Lower Turret Capacity 10 Tools
Overall Dimensions 178.5″ x 100.1″ x 101.8″
Weight 25,353 lbs

20,000 RPM B-Axis Milling Head
38-Station Tool Magazine
Full C-Axis on Main and Sub-Spindle
Y Axis Capability
8″ Main Chuck
6″ Sub Spindle Chuck
10 Station Lower Turret
Interface for Bar Feeder
Renishaw Probe
Blum Laser Tool Setter/Monitor
3D Quick SET
Mist Collector
Rigid Tapping
High Pressure Coolant System
Chip Conveyor
LNS Chip Blaster
Automatic Lubrication System
Tool Holders Included
