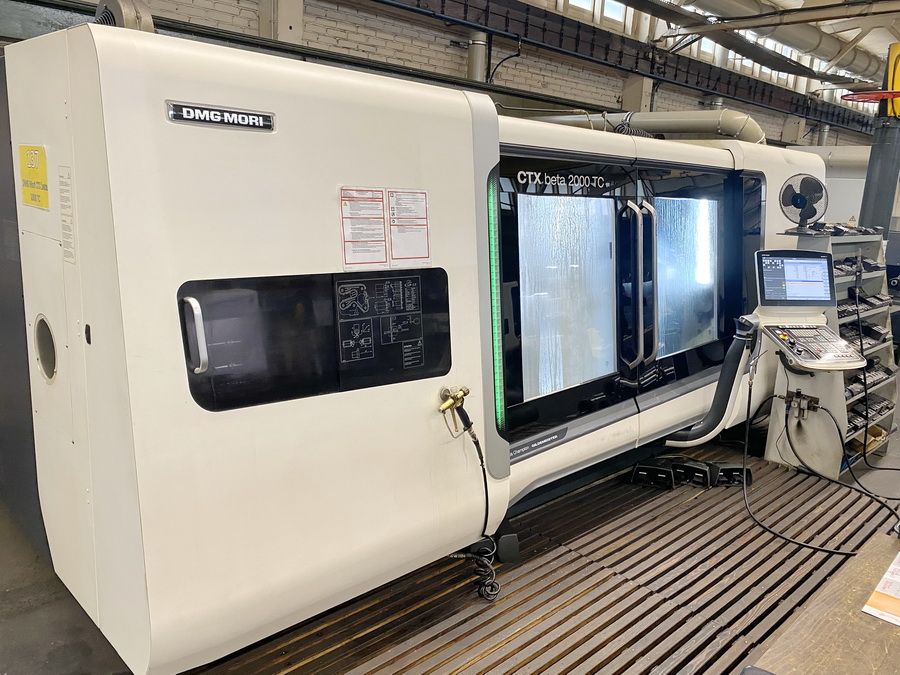

DMG, Gildemeister control 840 D sl Operate Celos 4,000 rpm CTX beta 2000 TC 4 Axis

X-axis 650 (+625/-25) mm
Z-axis 2,050 mm
C-axis
B-axis

control 840 D sl Operate Celos
turning diameter max. 630 mm
turning length 2,000 mm
distance between spindles 2,260 mm
main spindle type ISM 102 mm
main spindle speed range 0–4,000 rpm
main spindle power 33 / 40 kW
max. torque 60 / 100 Nm
inner draw tube diameter 104 mm
tool taper Capto C6
number of tool positions 100 pos.

max. tool diameter 140 mm
max. tool weight 12 kg
max. tool length 400 mm

milling spindle speed max. 12,000 rpm
milling spindle power 13.2 / 22 kW
sub spindle speed range 0–4,000 rpm
sub spindle power 28 / 37 kW
total power requirement 70 kVA

machine weight approx. 24 t
machine dimensions approx. 7.5 x 3.0 x 3.0 m
Automatic Tool Changer 100 pos.
chip conveyor
coolant system
documents

high pressure coolant 8 / 80 bar
paper band filter 980 l
partical hollow chuck unit
sub spindle
tailstock function counter spindle
through spindle coolant
work light
