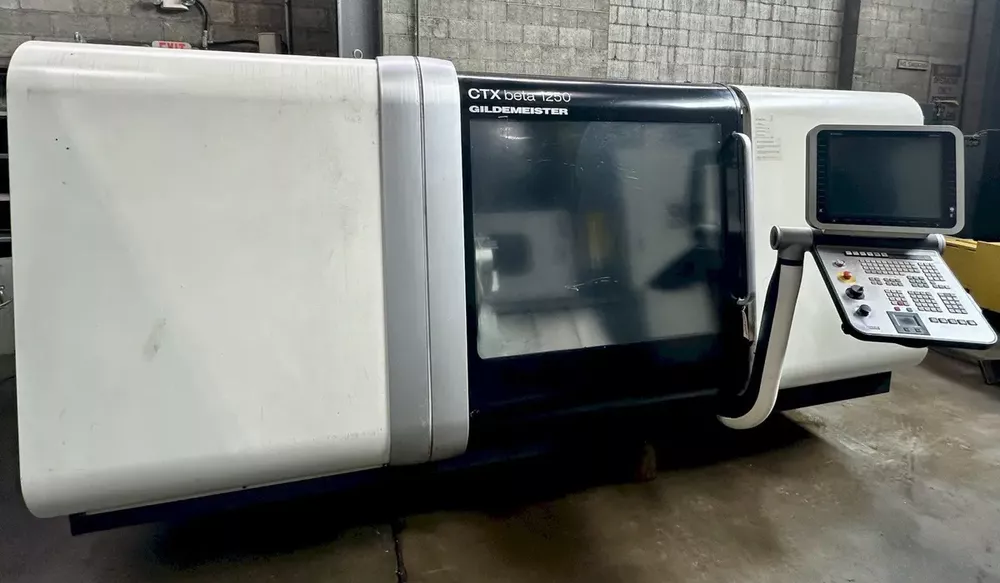

DMG, Gildemeister Control: Siemens 840D SL CNC CTX BETA 1250 2 Axis

X-Axis Travel: 11.8"
Z-Axis Travel: 51.2"
X-Axis Feed Rate: 899 – 1687 in/min
Z-Axis Feed Rate: 899 – 1687 in/min
X-Axis Rapid Traverse: 2362 in/min
Z-Axis Rapid Traverse: 1181 – 2362 in/min

Max Swing Over Bed: 27.6"
Max Swing Over Cross Slide: 14.9"
Max Turning Length: 49.2"
Max Turning Diameter: 16.1"
Max Part Weight: 1461 lb

Chuck Size: 12"
Distance Between Centers: 56.1"
Spindle Nose: FL 220 h5
Tailstock: Yes
Tailstock Taper: MK 5
Tailstock Travel: 47.2"
Tailstock Quill Diameter: 4.7"

Spindle Speed: 4000 RPM
Spindle Power: 46.9 hp

Tool Turret: 1
Tool Positions: 12 Station
Live Tooling: Yes

Sub Spindle: No
Machine Hours: 10605
Electrics: 480/3/60

Machine Dimensions: 190" x 93" x 81"
Machine Weight: 16,865 lb

Chip Conveyor: Yes
Coolant System: Yes
Tool Setter: Yes
