DMG, Gildemeister DMG MORI ERGOline® Control Siemens Sinumerik 840DI 4 000 RPM CTX Beta 1250 2 Axis

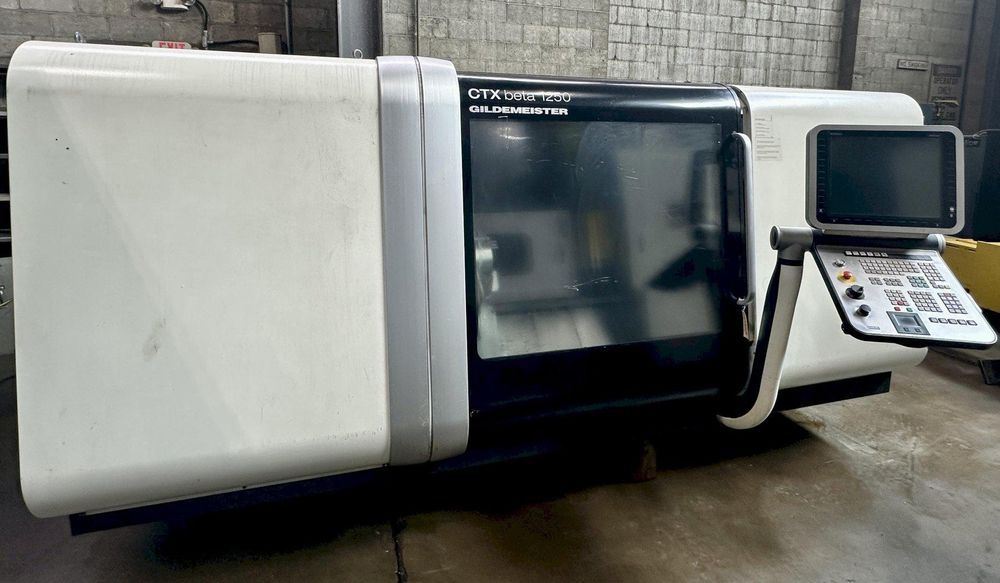

DMG GILDEMEISTER CTX Beta 1250
Year: 2010

CNC control: Siemens 840D SL
Max swing over bed: 27.6"
Max swing over cross slide: 14.9"
Max turning diameter: 16.1"
Chuck size: 12"
Max distance between centers: 56.1"
Max turning length: 49.2"
Max part weight: 1461 lbs
X-axis travel: 11.8"
Z-axis travel: 51.2"
Y-axis travel: ±2.36"
X-axis feed rates: 899 - 1687 IPM
X-axis rapid traverse: 2362.2 IPM
Z-axis feed rates: 899 - 1687 IPM
Z-axis rapid traverse: 1181 - 2362 IPM
Tool turret quantity: 1
Tool turret capacity: 12
Spindle nose: FL 220 h5
Max spindle speed: 4,000 RPM
Spindle power: 46.9 HP
Tailstock travel: 47.2"
Tailstock Morse taper: MK 5
Tailstock quill diameter: 4.7"
Machine hours: 10,605
Electrics: 480V / 3 Phase / 60 Hz
Machine dimensions: 190" x 93"
Machine height: 81"
Machine weight: 16,865 lbs

DMG MORI ERGOline® Control
Siemens Sinumerik 840DI
12" 3-jaw chuck
12-position tool turret with live tooling
C-axis
Y-axis
Prepped for steady rest
Heavy duty 45° slant bed construction
Paper filtration coolant system
Chip conveyor
