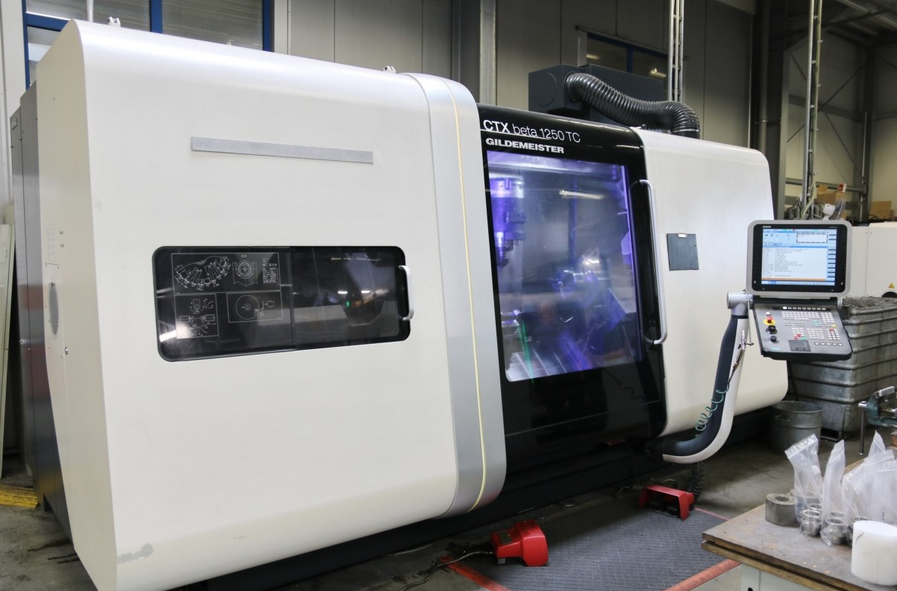

DMG, Gildemeister Siemens Sinumerik 840 D sl max 4000 min⁻¹ CTX beta 1250 TC 4A 4 Axis

DMG GILDEMEISTER CTX beta 1250 TC 4A
2011

Turning diameter max 500 mm
Turning length max 1200 mm
Control Siemens Sinumerik 840 D sl
Swing diameter 500 mm
Distance between spindles 1470 mm
Main spindle type ISM 76
Main spindle turning speed max 4000 min⁻¹
Main spindle power 40 / 48 kW
Main spindle max torque 28 / 36 Nm
Main spindle head 220h5
Spindle diameter in front bearing 130 mm
Spindle bore 87 mm
Bar material diameter 65 / 75 mm
C-axis 2x
Chucking diameter 215 mm
Tool magazine positions 12
Max tool diameter 80 mm
Max tool diameter with free toolbox 125 mm
Max tool weight 7 kg
Max tool length 300 mm
Milling spindle max speed 12000 min⁻¹
Milling spindle power 29 kW
Tool taper VDI 40
B-axis X-axis stroke 195 mm
B-axis Z-axis stroke 1200 mm
Subspindle speed max 5000 min⁻¹
Subspindle power 25 / 32 kW
Subspindle torque 280 / 380 Nm
Turret driven tool positions 12
Driven tool max spindle speed 4000 min⁻¹
Driven tool power 5.6 / 11.3 kW
Total power requirement 85 kVA
Machine weight approx. 15 tons
Machine dimensions approx. 8.0 x 4.0 x 3.0 m
Automatic tool changer 24 positions
Chip conveyor
Coolant system
Driven tools 6x
Exhaust fan
Hydraulic system
Milling spindle
Parts removal system
Signal light
Spindle oil cooler
Subspindle
Through spindle coolant
Tool holders 14x
Work light
