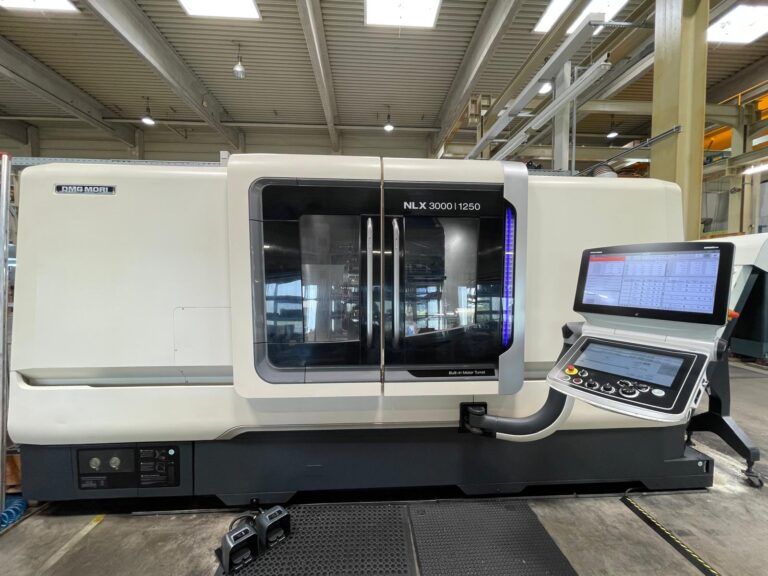

DMG Mitsubishi M730UM 3000 rpm MORI NLX3000/1250Y 3 Axis

X-Axis Travel: 280 mm
Y-Axis Travel: ±60 mm
Z-Axis Travel: 1370 mm
Turning Length: 1260 mm
Max. Turning Diameter: 420 mm
Swing Over Bed: 978 mm
Swing Over Cross Slide: 808 mm
Bar Capacity: 90 mm
CNC Control: Mitsubishi M730UM
Chip Conveyor
Air Blow Through Spindle Center Selectable via M-Function
Tool Measuring Arm
Mist Collector
Steady Rest
Work Area Light
Double Chuck Foot Switch for Main and Counter Spindle
Oil Skimmer
Custom Macro Common Variables (200)
Spindle Speed: 3000 rpm
Spindle Power: 22/18.5 kW
Spindle Bore: 91 mm
Spindle Nose: A2-8
Chuck Size: 15"
Chuck Manufacturer: KITAGAWA
Driven Tool Stations: 12
Driven Tool Speed: 10000 rpm
Tailstock Travel: 1284 mm
Tailstock Holder: MT-5
High-Pressure Coolant: 10 bar
Machine Length: 5300 mm
Machine Width: 2500 mm
Machine Height: 2400 mm
Weight: 8900 kg
