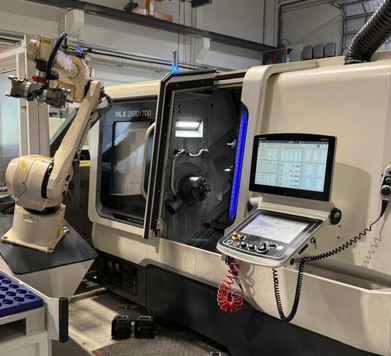

DMG Mitsubishi M730UM (CELOS – ERGOline Touch) 4000 rpm MORI NLX 2500 SY 700 3 Axis

X-axis travel: 260 mm
Y-axis travel: ±50 mm
Z-axis travel: 795 mm
Turning length: 705 mm
Max. turning diameter: 366 mm
Swing over bed: 920 mm
Swing over cross-slide: 740 mm
Bar work capacity: 80 mm
CNC controller: Mitsubishi M730UM (CELOS – ERGOline Touch)
Tool magazine places: 20
Tool holder: BMT40
Number of tool slots: 20
Driven tool speed: 10000 rpm
Driven tool power: 5.5/4.9/4.2 kW (3 min/5 min/cont)
Rapid feed rate: 30 m/min

Main spindle speed: 4000 rpm
Main spindle drive power: 18.5/18.5/15 kW (25%ED/50%ED/cont)
Main spindle bore: 91 mm
Main spindle chuck type: Hollow chuck Ø254 mm (BB210A821)
Main spindle chuck manufacturer: Kitagawa
Main spindle nose: JIS A2-8

Maximum torque main spindle: 49 Nm
Counter spindle speed: 5000 rpm
Counter spindle drive power: 11/7.5 kW (25%ED/cont)
Counter spindle bore: 73 mm
Counter spindle chuck type: Hollow chuck Ø210 mm (BB208A621)
Counter spindle chuck manufacturer: Kitagawa
Counter spindle nose: JIS A2-5

Maximum torque counter spindle: 22 Nm
Counter spindle travel: 734 mm
Coolant tank capacity: 366 liters
Electronic handwheel
Chip conveyor
Signal lamp
High pressure pump
Mist collector
Work area light
Double chuck foot switch for main and counter spindle
Coolant gun
Measuring probe
Paper band filter

Prepared for robot interface
Robot type: Fanuc R-30iA / M-16iB/20
Robot clamping range: Ø40–220 mm x 20 mm
Max. robot workpiece weight: 5.6 kg
Under power time: 23501 hours
Cutting time: 7494 hours
Rated power: 48 kVA
Machine length: 5330 mm
Machine width: 4100 mm
Machine height: 2395 mm
Machine weight: 8360 kg
