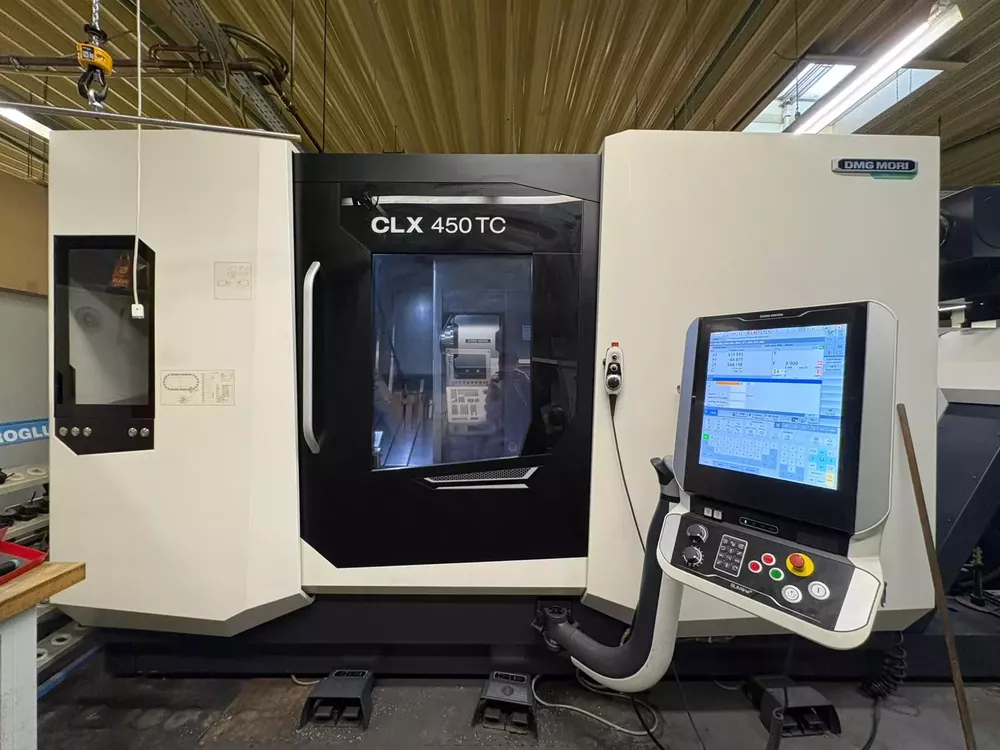

DMG MORI CLX 450 TC 5 Axis

X axis travel 750 mm
Y axis travel ±100 mm
Z axis travel 1100 mm
B axis travel ±120°
C axis main spindle
C axis sub spindle

Siemens 840D sl Operate Slimline control
Direct measuring system
Chip conveyor
Chip flushing gun
High pressure coolant 8 bar
High pressure coolant 20 bar
Coolant tank 600 l
Oil mist extraction
Renishaw RMP 40 probe
Maximum turning length 1100 mm
Turning diameter 400 mm
Bar capacity 67 mm
Main spindle nose A2-8
Main spindle speed 5000 rpm
Main spindle motor power 14 / 17 kW
Main spindle torque 275 / 345 Nm
Milling spindle speed 12000 rpm
Milling spindle motor power 8.8 / 10.5 kW
Milling spindle torque 73 / 90 Nm
Tool holder HSK 63
Tool magazine capacity 60 tools
Sub spindle nose A2-8
Sub spindle speed 5000 rpm
Sub spindle motor power 14 / 17 kW
Sub spindle torque 275 / 345 Nm
3 jaw chuck SMW Autoblok BBD 250/78
3 jaw chuck SMW BBD 250/78
Tailstock function via sub spindle
