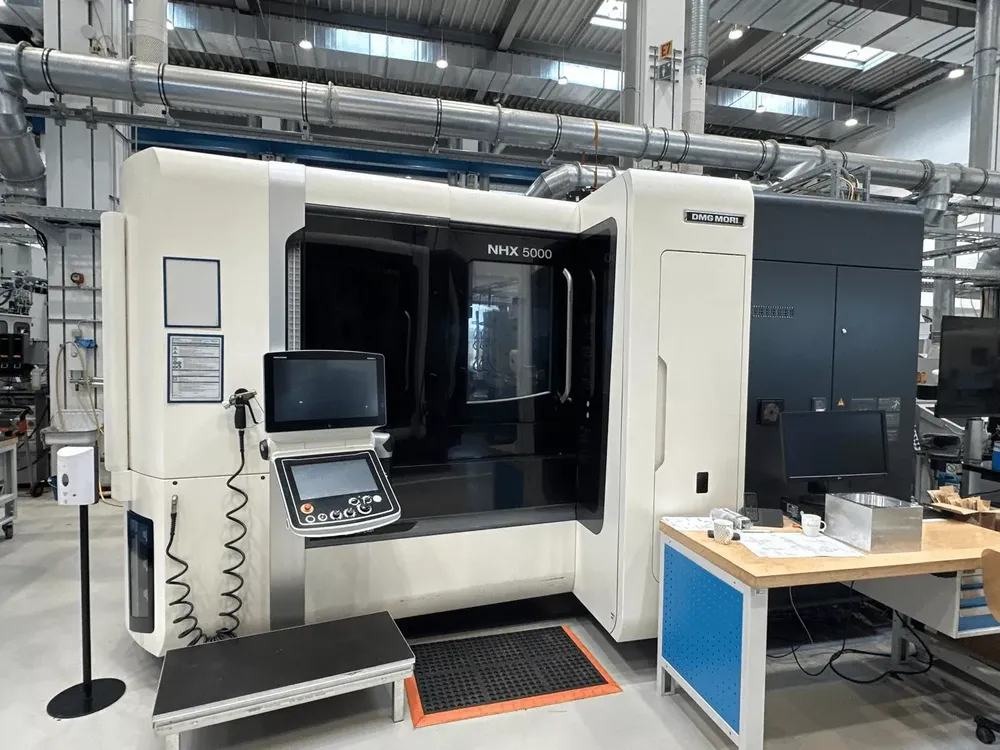

DMG MORI NHX 5000 (Ge2) 5 Axis

X-axis travel: 730 mm
Y-axis travel: 730 mm
Z-axis travel: 880 mm
Rapid traverse (X/Y/Z): 60 m/min
Feed rate (X/Y/Z): 60 m/min

Spindle speed: 15,000 rpm
Spindle motor power: 37 kW
Spindle torque: 250 Nm

Tool holder: HSK 63
Tool positions: 60
Max tool diameter: 70 / 140 mm
Max tool length: 550 mm
Max tool weight: 12 kg

Pallet system: 2 pallets
Pallet size: 500 × 500 mm
B-axis resolution: 0.001°
Max workpiece diameter: 800 mm
Max workpiece height: 1000 mm
Max table load: 700 kg

Control: M730UM with CELOS
Coolant system: KNOLL KF 110/700
High-pressure coolant: 70 bar
Chip conveyor: included

Machine length: 3.1 m
Machine width: 4.86 m
Machine height: 2.84 m
Machine weight: 11,200 kg
