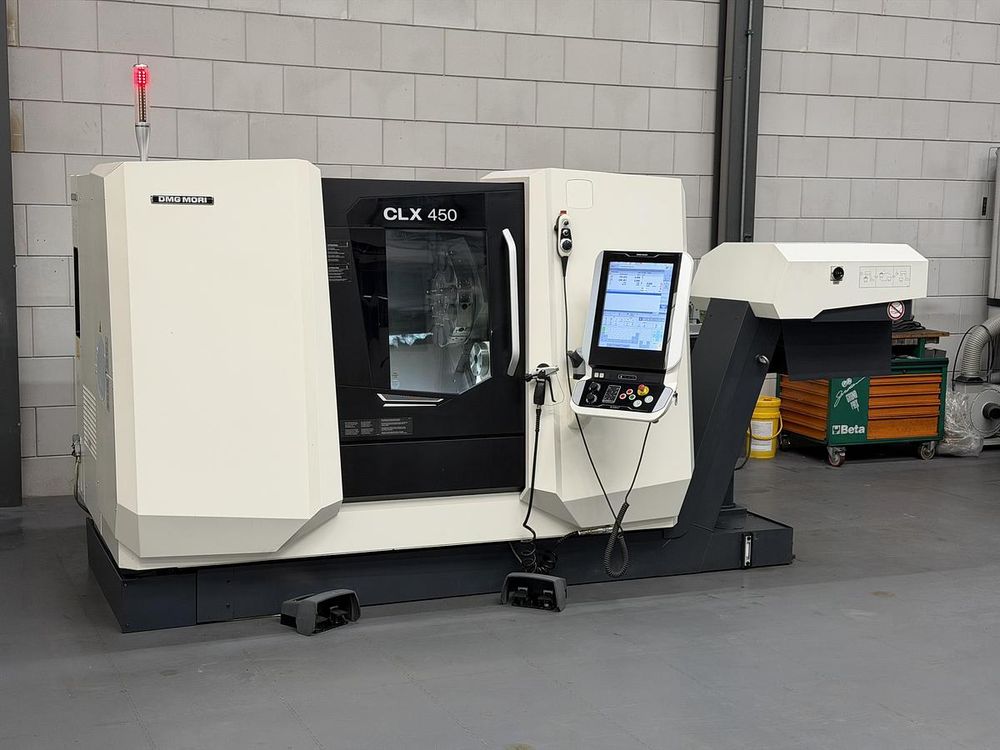

DMG MORI CLX 450 V3 3 Axis

X-axis travel: 267 mm
Z-axis travel: 600 mm
C-axis: 100 rpm, 370 Nm, 360°
Control: SIEMENS 840D ShopTurn, 19" DMG MORI SlimLine
Bar capacity / bore: 91 mm
Max turning diameter over bed: 650 mm
Max turning length: 685 mm
Spindle speed range: 0–4,000 rpm
Spindle power: 17 kW (100% ED), 25.5 kW (40% ED)
Spindle nose: A2-8
Turret type: VDI-40
Turret positions: 12 driven
Tailstock quill: MK5
Feedrate X-Z: 30 m/min
Chuck: 3-jaw Ø260 mm (unused, SMW Autoblok)
Additional tooling: Various VDI-40 holders
Measuring system: MARPOSS probe with calibration holder
Coolant: High-pressure pump 12 bar, mist extraction prep
Foot pedal: Double for spindle clamp/unclamp
Chip conveyor: Yes
Spray gun: 5 bar
Documentation: Original DMG documents
Set chemical anchoring
