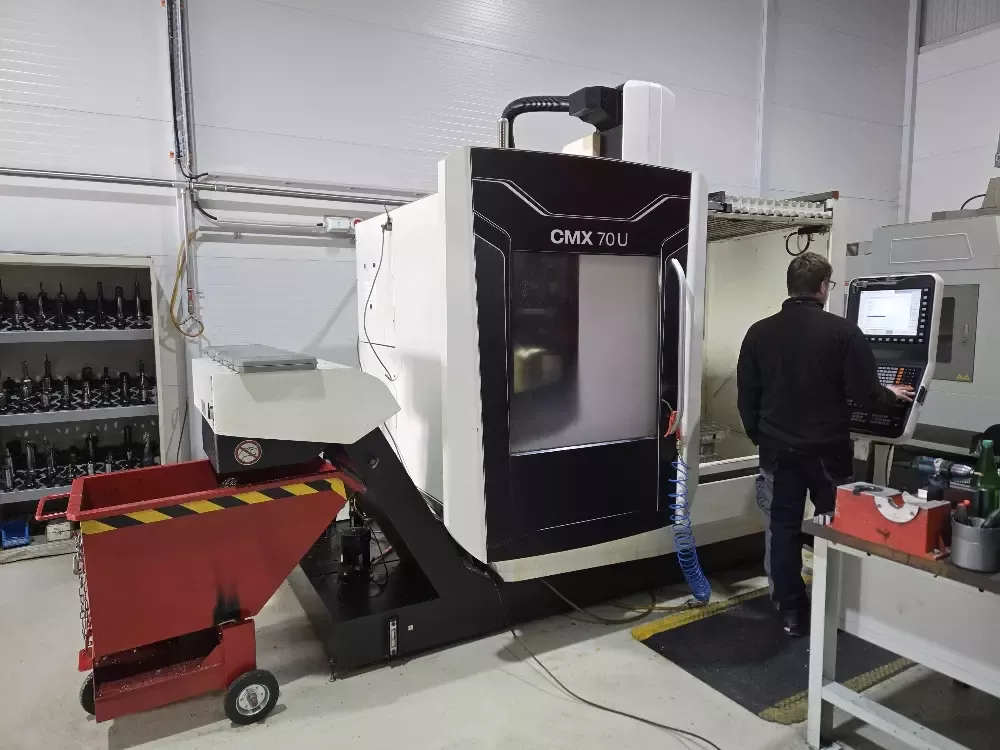

DMG MORI CMX 70 U 3+2 5 Axis

X Axis Travel: 750 mm
Y Axis Travel: 600 mm
Z Axis Travel: 520 mm
Rapid Traverse (X/Y/Z): 30 m/min
B Axis: -10° / +95°
C Axis: 360°

Control: Heidenhain TNC 620
NC Swivel Rotary Table
Max Spindle Speed: 12000 rpm
Drive Power: 13 kW

Torque: 82 Nm
Tool Holder: SK 40
Tool Capacity: 32
Table Size: 800 × 620 mm
Max Table Load: 350 kg
Chip Conveyor
Internal Coolant (IKZ)

Tool Breakage Control: Heidenhain TS 27 R
Probe: Heidenhain PP 40
Direct Measuring System
Operating Mode: 4
Electronic Handwheel
Machine Dimensions: 5.35 × 4.14 × 3 m
Machine Weight: 4700 kg
