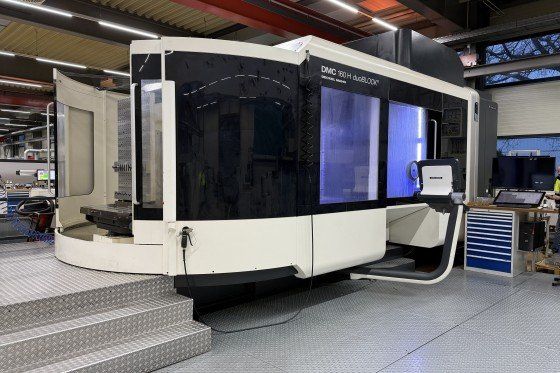

DMG MORI DMC 160H duoBLOCK 4 Axis

DMG MORI DMC 160H duoBLOCK
2014

CNC control Siemens 840D Solution Line
X-axis travel 1600 mm
Y-axis travel 1100 mm
Z-axis travel 1400 mm
B-axis indexing 360000°
Table length 1250 mm
Workpiece capacity 1530 x 1295 mm
Max workpiece weight 3500 kg
Max tool length 650 mm
Max tool weight 30 kg
Max tool size 400 x 250 mm
Feed force up to 15 kN (100% duty cycle)
Coolant filtration system
BLUM Laser NT
3D quick set
MPC protection
3D measuring probe
DXF import capability
Tool magazine 180 tools
Tool holder type HSK-100A
2 cast iron angle plates 1500 mm
Working hours 15000
First owner machine
Machine length (approx.) 9170 mm
Machine width (approx.) 6320 mm
Machine height (approx.) 3969 mm
Machine weight (approx.) 39500 kg
