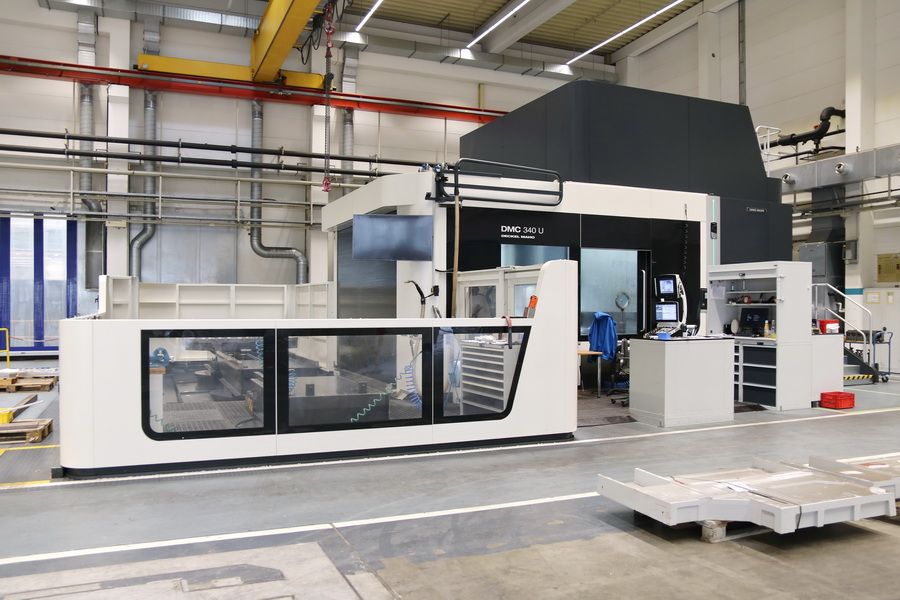

DMG MORI DMC 340 U 5 Axis

X-axis travel: 3,400 mm
Y-axis travel: 3,400 mm
Z-axis travel: 1,600 mm
B-axis swivel range: -30° to +180°
NC rotary table diameter: 2,500 x 2,000 mm
Maximum table load: 10,000 kg
Table speed: 5 rpm
Distance spindle center to table: 230–1,830 mm
Distance spindle nose to table: -1,600 to 1,800 mm
Control: CELOS 840D sl Siemens
Maximum spindle speed: 15,000 rpm
Spindle motor power: 52 / 42 kW
Maximum spindle torque: 404 / 280 Nm
Tool taper: HSK-A100
Rapid traverse: 60 / 30 / 40 m/min
Maximum feed rate: 60,000 mm/min
Tool magazine capacity: 303 positions
Maximum tool diameter: 110 mm
Maximum tool diameter with free adjacent pocket: 280 mm
Maximum tool length: 900 mm
Maximum tool weight: 45 kg
Tool change time: 7.5 s
Total connected load: 140 kVA
Machine weight: approx. 106 t
Machine dimensions: approx. 14.0 x 13.0 x 7.0 m

Features / Equipment
5-axis universal machining center
Accuracy package
MDynamics package
Approx. 10,500 spindle hours
Cone cleaning station with rotating brushes
Balluff tool identification
Machine protection via rapid shutdown (MPC)
Laminated safety glass
Design for pit installation
Linear scales
Camera remote system with screen on control panel
3D quickSET
Air blow through spindle
Automatic front door
Chip conveyor
Coolant system
Electronic handwheel
Flushing system
High-pressure coolant system 10–80 bar
Oil mist extraction
Pallet changer with 2 positions
Rotary screen
Signal lamp
Touch probe Renishaw RMP 60
Through-spindle coolant
Tool setting system (laser)
