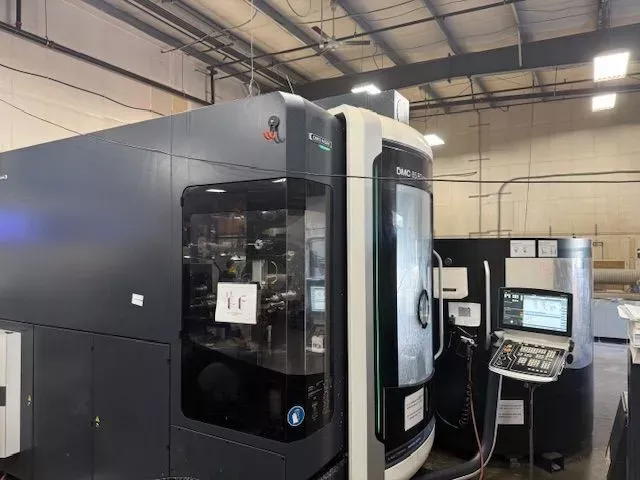

DMG MORI DMC 65 FD MONOBLOCK 5 Axis

X-Axis Travel: 28.9"
Y-Axis Travel: 25.5"
Z-Axis Travel: 22"
A-Axis Travel: ±120°
C-Axis Travel/Table Indexing: 360°

Number of Tables/Pallets: 6
Weight on Table: 1,322 lb
Integrated NC Rotary Table Size: 26.8"
Vertical Turning Table Size: 26.0"
Vertical Turning Table Speed: 1,200 RPM
Vertical Turning Table Horsepower: 49.6 hp
Control: CELOS with Siemens 840D SI Operate CNC
Spindle Horsepower: 47 hp
Spindle Speed: 20,000 RPM
Spindle Taper: HSK-A63
Automatic Tool Changer Capacity: 180
Tool Diameter: 6.3"
Tool Length: 12.4"
Tool Weight: 17.6 lb
Max Workpiece Diameter and Height: 33" x 19.6"
Rapid Traverse Rate X/Y/Z: 1,575 in/min.
Cutting Feed Rate: 1,575 in/min.
Machine Weight: 34,092 lb
Milling and Turning Capabilities
Infrared Measurement Probe Renishaw SK 40
ATC with Turning Cycle
Rotary Pallet Storage RPS 6/M/T
Tool Magazine Pockets 180 SK 40
Production Package 80 Bar, 980 L, Frequency Control
Rotating Clear View Window
Spray Pistol Coolant Chip Rinsing
Oil Emulsion Mist Separator
Coiling Air Blast
Tool Measuring in Machining Area Blum Lase FD
Tool Breakage Control Mechanical
Sensor Package i4.0
Safety Package for Power Failure
Chip Conveyor
3D Quickset Tool Kit
Renishaw OMP-60 Optical Probe System
Coolant Filtration System with Paper Filter
Spindle Chiller
