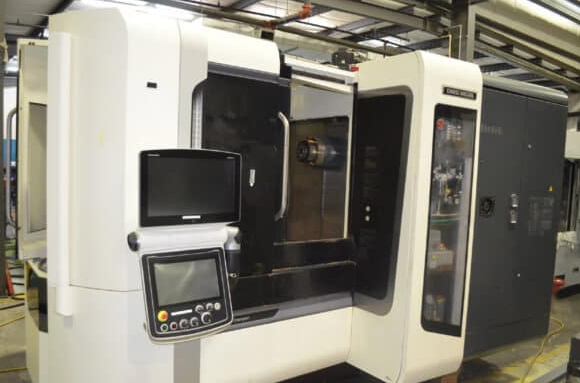

DMG MORI NHX4000 4 Axis

X-axis travel: 22 in
Y-axis travel: 22 in
Z-axis travel: 26 in
Pallet surface to spindle center: 3.1–25.2 in
Pallet center to spindle gauge plane: 2.8–28.7 in
Distance from floor to pallet surface: 41.3 in
Max. workpiece swing diameter: 24.8 in
Max. workpiece height (tap pallet): 35.4 in
Number of pallets: 2
Pallet loading capacity: 880 lbs
Pallet indexing: 1°
Spindle speed: 0–20,000 RPM
Number of spindle speed ranges: 2
Spindle taper: No. 40
Rapid traverse X/Y/Z: 2,362.2 IPM
Feedrate X/Y/Z: 2,362.2 IPM
Tool shank type: CAT40
Tool storage capacity: 60 ATC
Max. tool diameter with adjacent tools: 2.7 in
Max. tool diameter without adjacent tools: 6.6 in
Max. tool length: 17.7 in
Max. tool mass: 26.4 lbs
Spindle drive motor: 50 / 34.7 / 24.7 HP
Floor space (WxDxH): 107 x 164 x 100 in
Machine weight: 18,700 lbs
MAPPS ERGOline Operation Panel with 21.5” screen control
20,000 RPM spindle speed
2-pallet changer
Chip conveyor
.001 full rotary
