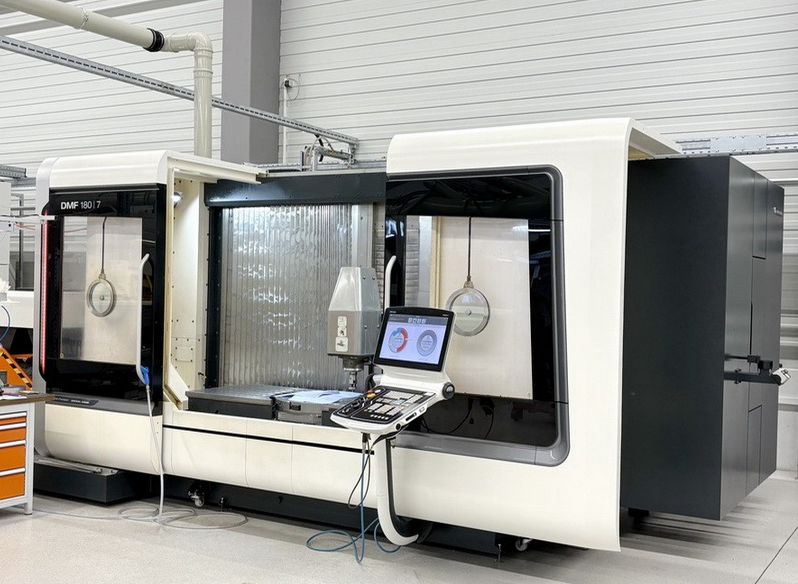

DMG MORI DMF 180-7 5 Axis

X-travel: 1800 mm
Y-travel: 700 mm
Z-travel: 700 mm
B-axis swivel: ±100°
C-axis rotary table: 360°

Rotary table diameter: 750 mm
Rotary table T-slot distance: 63 mm
Rotary table height: 255 mm
Rotary table turning speed: 16 1/min
Rotary table resolution: 0.001°
Control: 840 D sl op. (CELOS) Siemens
Main spindle speed range: 20–20,000 min⁻¹
Main spindle power: 35 / 25 kW
Main spindle max torque: 130 / 86 Nm
Spindle taper: HSK-A63
Work table surface area: 2100 × 700 mm
Max table load: 500 kg
Number of T-slots: 7
Tool magazine positions: 60 pos.
Max tool weight: 6.0 kg
Max tool diameter: 80 mm
Max tool diameter with free toolbox: 130 mm
Max tool length: 300 mm
Chip-to-chip change time: 7.6 sec
Rapid traverse (X/Y/Z): 40 m/min
Acceleration: 4 m/s²
Max feed speed: 40,000 mm/min
Feed force (X/Y/Z): 8 kN
Total power requirement: 73 kVA
Machine weight: 13.7 t
Machine dimensions: 7.5 × 6.5 × 3.0 m

Features:
5-axis CNC
Travelling column milling machine
Motorspindle SpeedMaster
Internal coolant system
Spindle, Y-axis and B-axis overhauled 04/2025
3D quickSET
Airblow through spindle center
Chip conveyor
Coolant system
Direct probing
Electronic hand wheel
Full splash guard
High pressure coolant 40/80 bar
Oil dust skimmer
Operation mode 4
Paper band filter
Rotary screen 2x
Spray gun
Test probe DMG MORI - PP 60 opt.
Tool setting BLUM Laser
