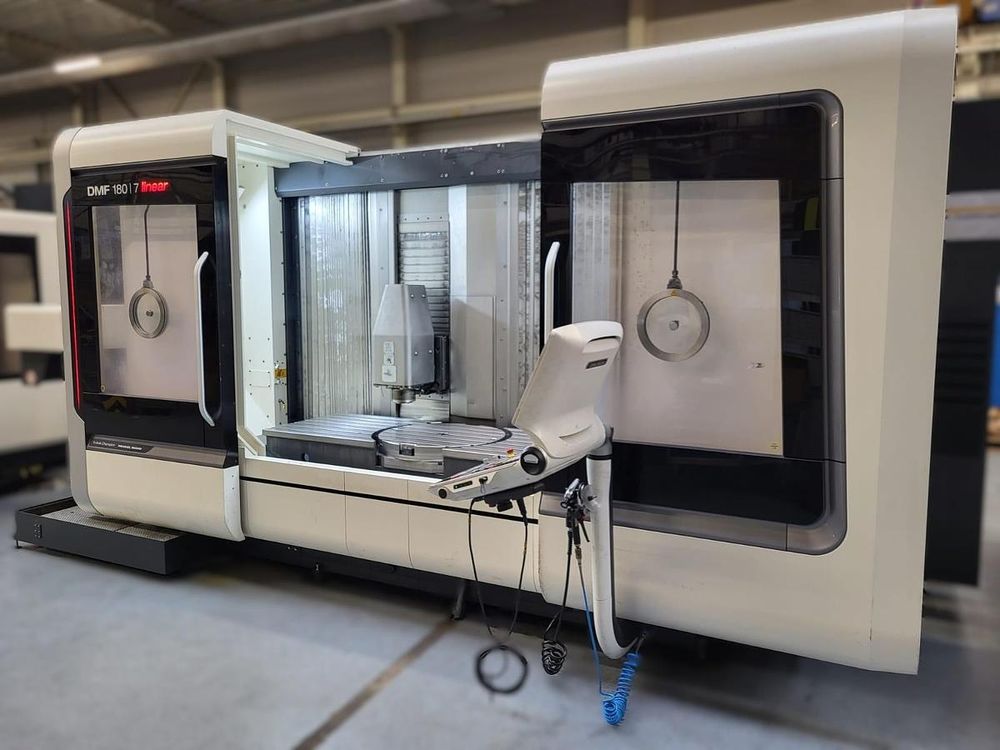

DMG MORI DMF 180|7 linear 3 Axis

X-axis travel: 1,800 mm
Y-axis travel: 700 mm
Z-axis travel: 700 mm
Rapid traverse X/Y/Z: 80 m/min
Acceleration X/Y/Z: 8 m/s²

Control: Heidenhain TNC 640
NC swivel milling head
Direct measuring systems
Machine protection control
Electronic handwheel
Infrared touch probe PP60 optical
Through-spindle coolant 40 bar
Coolant flushing gun
Oil and emulsion mist extractor
Air blow through spindle center
Chip conveyor

Spindle speed: 20,000 rpm
Spindle motor power: 35 / 25 kW
Spindle torque: 130 / 86 Nm
Tool taper: SK 40

Tool magazine capacity: 60 positions
Tool change time chip-to-chip: 6.5 s

Table diameter: 750 mm
Table load: 500 kg
Rigid table with integrated rotary table

Operating hours: approx. 21,460 h
Spindle hours: approx. 12,928 h
Machine weight: approx. 14,080 kg
