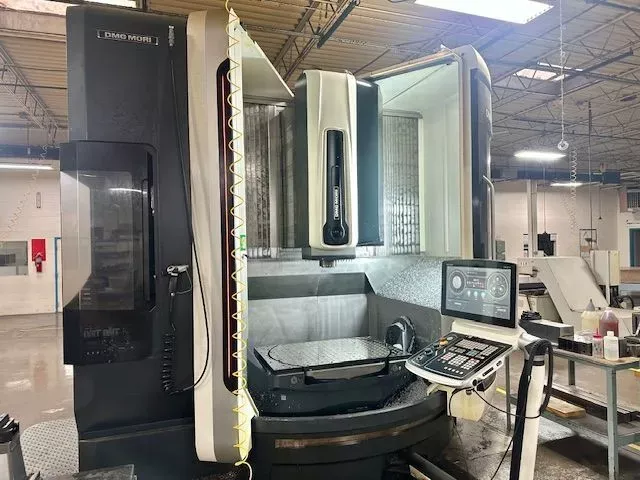

DMG MORI DMU 105 MONOBLOCK 5 Axis

X-axis travel 44.7 in
Y-axis travel 41.3 in
Z-axis travel 29.5 in

Rapid traverse X-axis 1,575 in/min
Rapid traverse Y-axis 1,575 in/min
Rapid traverse Z-axis 1,575 in/min
Cutting feed rate 1,575 in/min

A-axis travel ±120 degrees
C-axis travel 360 degrees

CNC control CELOS with Siemens 840D SI Operate
3D simultaneous machining
3D QuickSet
Dynamic collision monitoring
Machine protection control
Safety package for power failure
Handheld remote pulse generator
Rotating clear view window
Spray pistol with pump
Coolant ring jet
Infrared measuring probe
Laser tool length measurement
Through-spindle coolant 40 bar
Chip conveyor
Spindle speed 20,000 RPM
Spindle motor power 46.9 hp
Spindle taper HSK A63
Automatic tool changer 60 positions
Maximum tool diameter 3.14 in
Maximum tool diameter with adjacent pockets free 5.1 in
Maximum tool length 11.8 in
Maximum tool weight 17.6 lb
Table length 47.2 in
Table width 33.5 in
Maximum table load 4,409 lb
Maximum workpiece diameter 48.8 in
Maximum workpiece height 27.2 in
Machine weight 39,462 lb
Inner cooled ball screws
Optimal 3-point support system
Transformer
64 tool holders
Two 5-axis vises
