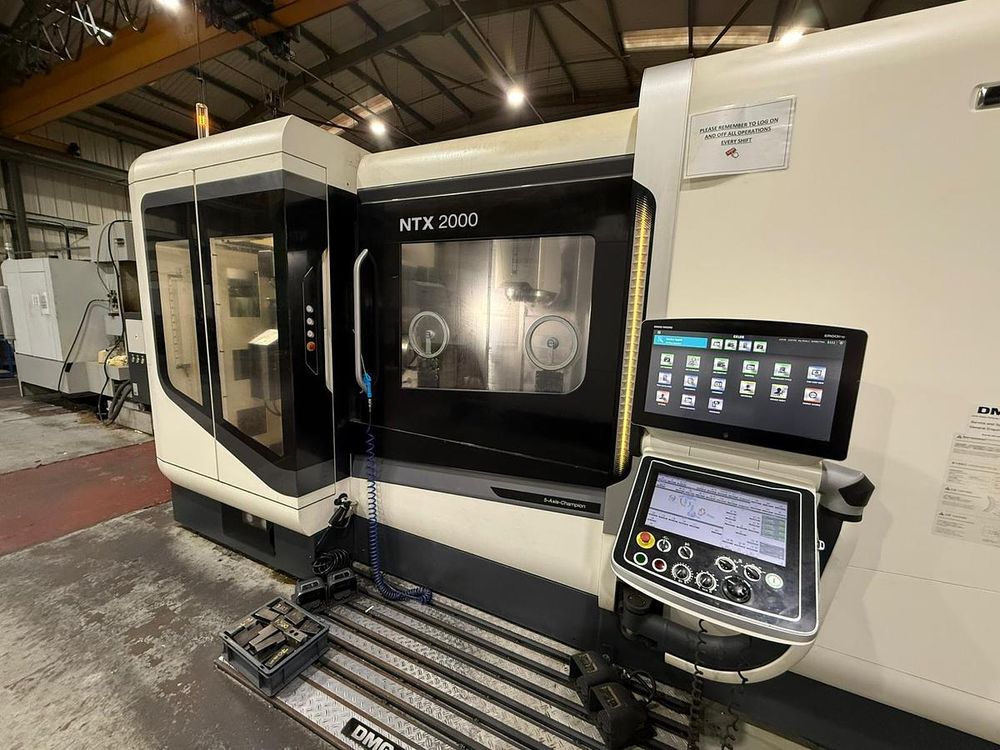

DMG MORI NTX 2000 / 1500 SZM 9 Axis

X1-axis travel: 675 mm
Y-axis travel: ±150 mm
Z1-axis travel: 1,562 + 164 mm
A-axis travel: 1,542 mm
X2-axis travel: 200 mm
Y2-axis travel: ±40 mm
Z2-axis travel: 1,542 mm
B-axis rotation: ±120°
B-axis speed: 100 rpm
C-axis: Not specified

CNC control: CELOS
CNC control: FANUC F31i-B5
Control software: MAPPS 4S
Automatic probing and tool correction
Automatic measuring arm on main spindle
Memory expansion
Plane transformation cycle

Maximum bar capacity: 81 mm
Maximum turning diameter: 670 mm
Turning length: 1,538 mm

Main spindle speed: 4,000 rpm
Main spindle motor power: 26 / 22 kW
Main spindle bore: 91 mm
Sub-spindle speed: 5,000 rpm
Sub-spindle motor power: 22 / 18.5 kW
Sub-spindle bore: 73 mm

Milling spindle speed: 12,000 rpm
Milling spindle motor power: 28 / 23 kW
Tool holder type: Capto C6

Rapid feed X-axis: 50 m/min
Rapid feed Y-axis: 40 m/min
Rapid feed Z-axis: 50 m/min
Rapid feed A-axis: 36 m/min
Rapid feed X2-axis: 25 m/min
Rapid feed Y2-axis: 18 m/min
Rapid feed Z2-axis: 40 m/min

Tool magazine capacity: 76 positions
Maximum tool diameter: 70 mm
Maximum tool diameter with adjacent pocket free: 130 mm
Maximum tool length: 400 mm
Maximum tool weight: 8 kg
Turret tool stations: 10 positions
Square tool shank size: 20 mm
Boring bar shank diameter: 32 mm

Hollow clamping device: 67 mm
Chip conveyor
Coolant system: 70 bar
Coolant type: Water-soluble
Air blast on main spindle
Air blast on sub-spindle
Foot switch for spindle 1
Foot switch for spindle 2
Full indexing of tool spindle
Turret tailstock function
Workpiece ejector
Parts unloader
Bar loader preparation
Mist extractor interface
RotorClear unit
RotorClear unit
Signal tower with 4 colors
Multi-dry filter
Coolant spray gun
Main spindle hours: 8,120 h
Operating hours: 23,250 h
