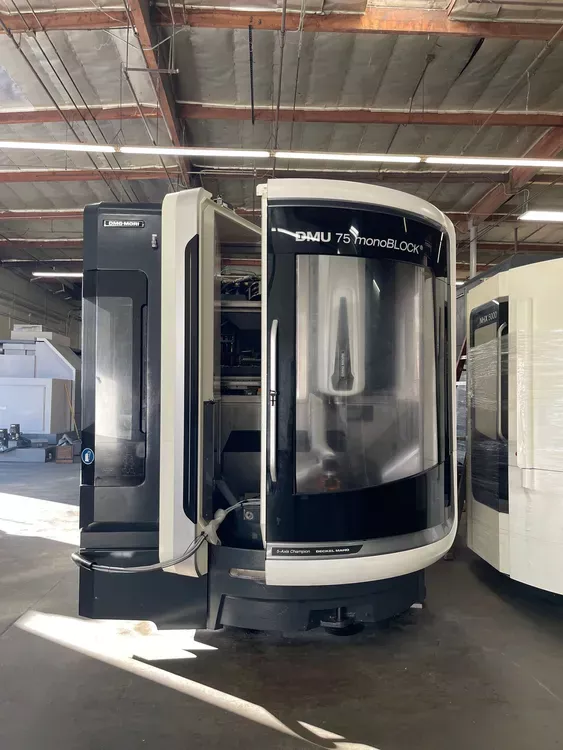

DMG MORI DMU 75 MONOBLOCK 5 Axis

X axis travel 29.5 in
Y axis travel 25.6 in
Z axis travel 22 in
Rapid traverse X axis 1,575 in/min
Rapid traverse Y axis 1,575 in/min
Rapid traverse Z axis 1,575 in/min
Cutting feed rate 1,575 in/min
A axis travel ±120°
C axis table indexing 360°
Integrated NC rotary table size 25.6 in
Control CELOS with Siemens 840D SI Operate
Air blast through spindle
Infrared measuring probe Renishaw SK-40
Tool measuring in machining area Blum laser
3D Quickset
VCS complete
Sensor package i4.0
MDynamics package
Electronic handwheel
Safety package for power failure
3D data model
Production package 40 bar / 23 l/min 600 l tank
Economic production package
Spray pistol for chip rinsing
Oil and emulsion mist separator
HSK A63 Speed Master spindle
Main spindle speed 20,000 rpm
Main spindle power 47 hp
Main spindle taper 63
Automatic tool changer 60 tools
Max tool diameter 6.3 in
Max tool diameter with adjacent pockets free 7.9 in
Max tool length 15.6 in
Max tool weight 17.6 lb
Number of tables 1
Table length 31.5 in
Table width 25.6 in
Table load capacity 1,320 lb
Max workpiece diameter 33.8 in
Max workpiece height 19.6 in
Chip conveyor
Chip chiller 34,000 BTU standalone
Machine weight 34,092 lb
