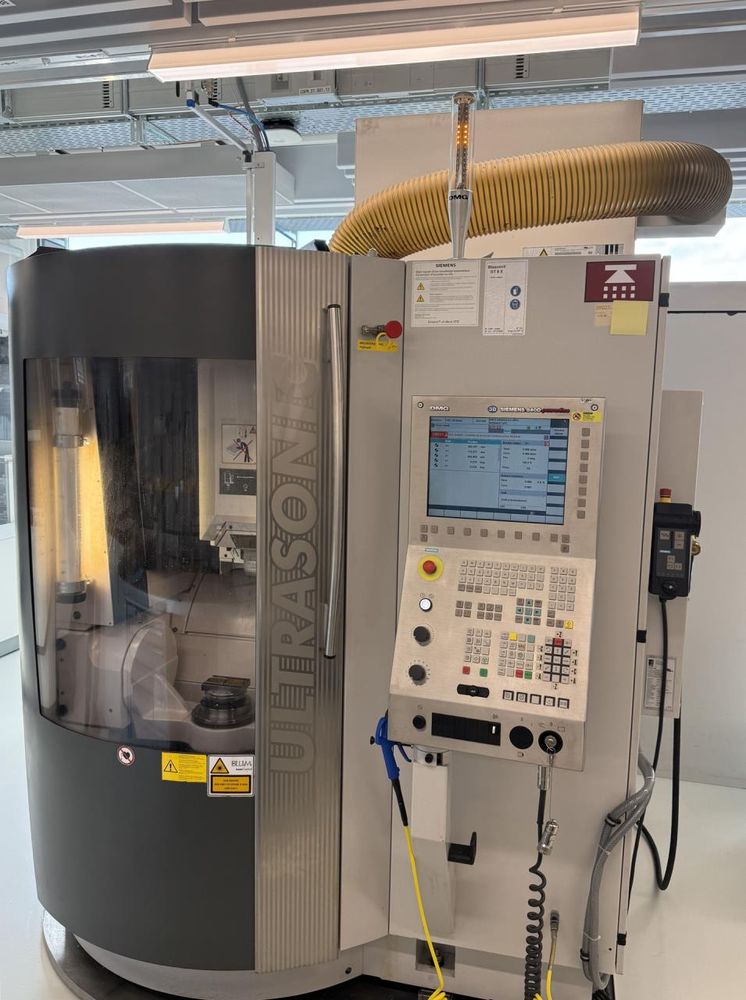

DMG ULTRASONIC 5 Axis

DMG ULTRASONIC
Controller : SIEMENS 840 D

Number of axis total5
Circulary table diameter190 mm
Table load max.10 kg
Longitudinal travel (X-axis)120 mm
Transversal travel (y-axis)120 mm
Vertical travel (z axis)200 mm
Swivel angle (a-axis)-10 / +120 °
C axis360 °
Table speed150 rpm
Tool magazine number of tool places16
Tool diameter max.30 mm
Tool lenght130 mm
Average chip-to-chip time15 sec
Spindle nose: HSK32

Spindle speeds:40000 rpm
Feed range10000 mm/min
Rapid traverse:10 m/min
Air connect6 bar
Voltage 50 Hz 3x400 Volt
Total power required25 kVA
Machine's weight about1800 kg

Overall dimensions machine:
Length2400 mm
Width1600 mm
Height1900 mm

Various accessories:
Zero-point clamping system
EROWA
Set of toolholders
Coolant system
Additional coolant filter
Coolant through spindle (cts)
40 bar
Linear workpiece magazine
Type
PH2/120
Oil mist extractor
Spindlecooling
Switch cabinet Air conditioner
