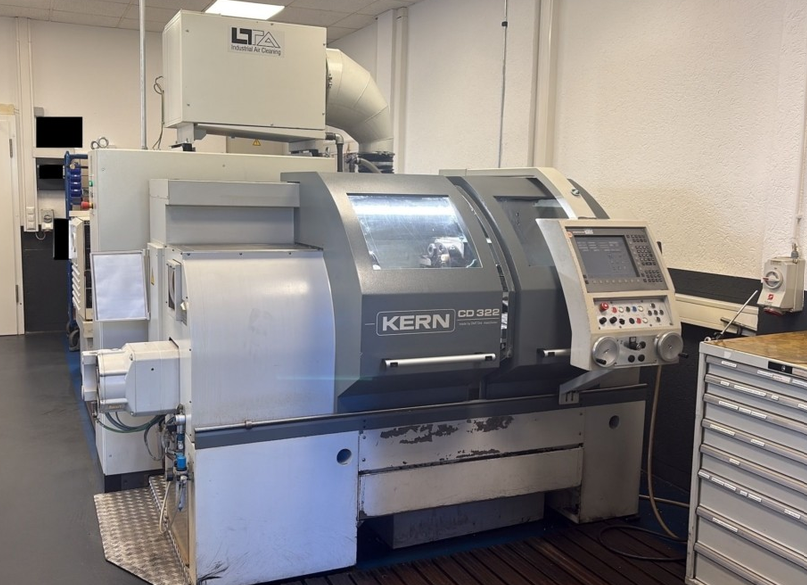

DMT HEIDENHAIN MANUALplus 620 3000 rpm KERN CD 322 5 Axis

X-axis travel: 200 mm
Z-axis travel: 750 mm
C-axis
Control: HEIDENHAIN MANUALplus 620
5-axis configuration
Swing over bed: 320 mm
Swing over cross slide: 150 mm
Spindle speed: 1–3000 rpm
Spindle motor: 16/15/12 kW
Spindle nose: DIN 55027 Size 6
Spindle bore: 64 mm
Front spindle bearing diameter: 100 mm
Chuck size: 200/250 mm
Feed rate X-axis: 0.001–1000 mm/rev
Feed rate Z-axis: 0.001–2000 mm/rev
Rapid traverse X-axis: 5 m/min
Rapid traverse Z-axis: 10 m/min
Automatic 8-position turret
Tool holder: DIN 69880 Ø30 mm
Driven tool speed: 4000 rpm
Axial tool holders
Radial tool holders
ER collet system
Collet clamping range: 1–16 mm
Multifix B toolpost
Tailstock quill diameter: 60 mm
Tailstock quill travel: 140 mm
Tailstock taper: MT4
Live center MT4
Tailstock roller guide
Coolant pump, variable frequency
Coolant pressure: 1–4 bar
Coolant flow: 10–20 l/min
Oil skimmer
Oil mist filter
Chip tray
Coolant tray
Coolant cleaning gun
Second chip protection door
Fully enclosed right side guarding
Main spindle brake
Collet chuck
Collet capacity: 3–42 mm
Ethernet interface
USB interface
DXF conversion software
DataPilot programming software
Operating hours: 5891 h
Voltage: 400 V / 50 Hz
Machine dimensions: 2440 × 1660 × 1700 mm
Electrical cabinet dimensions: 1200 × 500 × 1700 mm
Weight: 2.1 t
