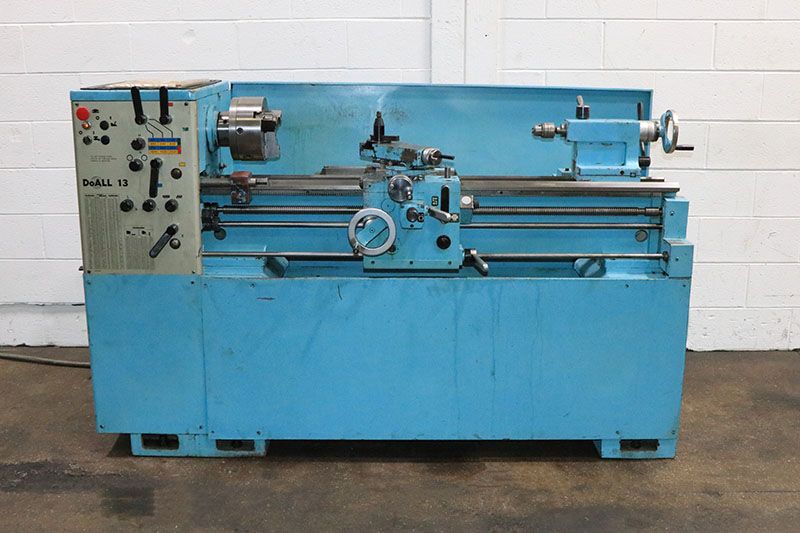

DoAll, Romi Engine Lathe 2,500 RPM 1340

Swing over bed: 13"
Swing over carriage wings: 11-3/8"
Swing over cross slide: 7-11/16"
Distance between centers: 40"
Cross slide travel: 7-7/8"
Spindle bore: 1-9/16"
Spindle nose: D1-4"
Spindle speed range: 50–2,500 RPM
Spindle speed steps: 12
Longitudinal feed range: 0.0008–0.0287 in/rev
Cross feed range: 0.0004–0.0129 in/rev
Inch threads range: 4–72 TPI
Metric threads range: 0.4–7 mm pitch
Tailstock quill travel: 4-11/16"
Tailstock quill diameter: 1-3/4"
Tailstock taper: 3 MT
Approximate floor space: 34" x 77" x 48"
Approximate weight: 2,500 lbs

Taper attachment
8" 3-jaw chuck
Thread dial
Carriage stop
Full back splash
Tool post
Headstock center sleeve
Dead centers (headstock & tailstock)
Manuals
5 HP spindle drive motor
