Dörries SIEMENS 850T CNC-control Max. 400 U/min VCE 1400/100 2 Axis CNC Vertical Turning Lathe

Ref : 1183254-3-W
Condition : Used
Manufacturer : Dörries
Controller : SIEMENS 850T CNC-control
Spindle Speed : Max. 400 U/min
Model : VCE 1400/100
Nb Of Axis : 2 Axis
Type : CNC Vertical Turning Lathe
Year(s) : 1988
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 02 Sep. 2014

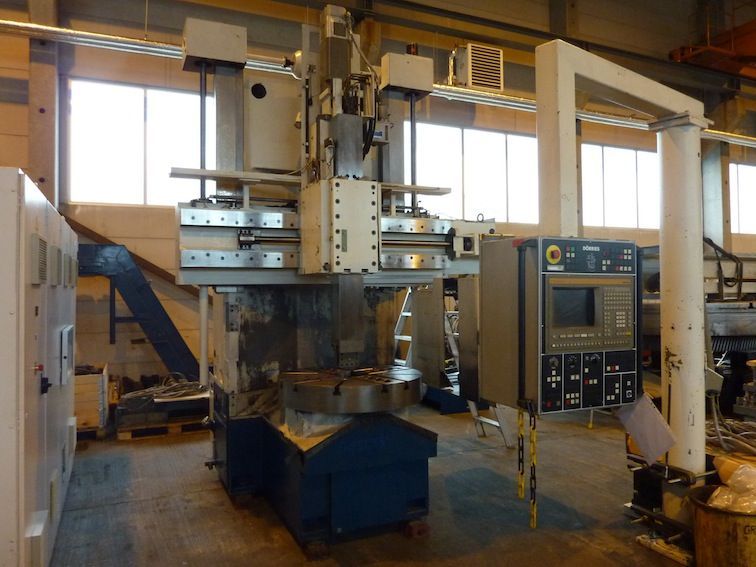

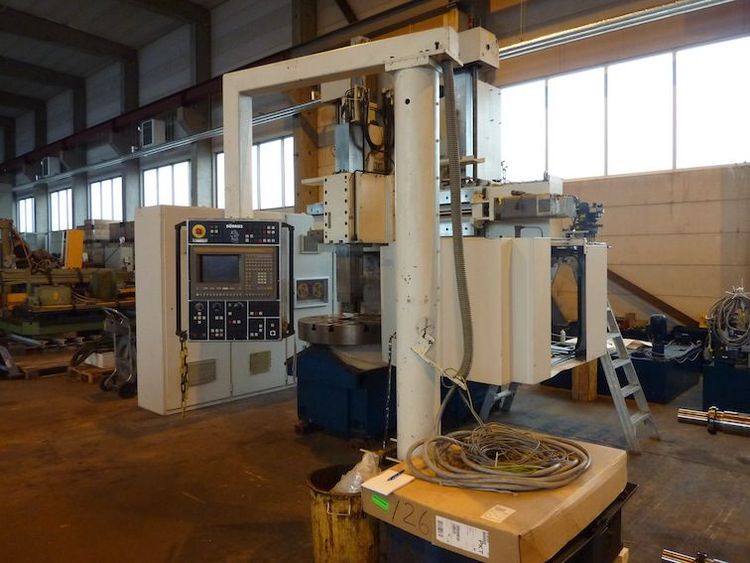

DÖRRIES VCE 1400/100
Vertical Turret Lathe - Single Column
Year of construction 1988

faceplate ø 1000 mm
swing ø 1400 mm
turning height 1400 mm
faceplate turning speed range 3,25-400 U/min
table load 6000 kg
cross rail adjustment - vertical 700 mm
max. torque on the faceplate 20000 Nm
distance faceplace - underedge steelholder 1100 mm
total power requirement 69 kW
weight of the machine ca. 15 t
dimensions of the machine ca. 4,2x3,3x5,3 m

Accessories:
SIEMENS 850T CNC-control
toolchanger
