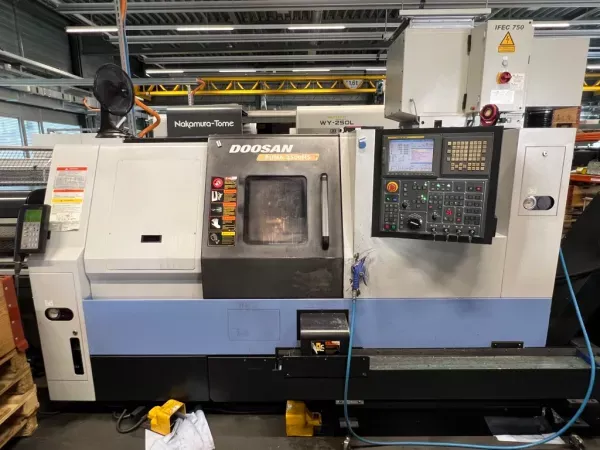

Doosan CNC CONTROL 3500 rpm Puma 2500 MS 2 Axis

Swing diameter over bed: 600 mm
Swing diameter over cross slide: 550 mm
Max turning length: 500 mm
Max turning diameter: 330 mm
Max workpiece weight: 290 kg
Chuck diameter: 255 mm

Spindle nose: A2-8''
Spindle bearing diameter, front: 130 mm
Spindle bore: 90 mm

Clamping cylinder: 77 mm
Drawbar: 77 mm
Spindle speed range: 35-3500 rpm
Max spindle torque: 440 Nm

X-axis travel: 250 mm
Z-axis travel: 580 mm
B-axis travel: 580 mm

Rapid traverse X-axis: 20 m/min
Rapid traverse Z-axis: 24 m/min
Rapid traverse B-axis: 20 m/min
Feed rate X-axis: 500 mm/rev
Feed rate Z-axis: 500 mm/rev
Feed force X-axis: 8000 N
Feed force Z-axis: 8000 N
Feed force B-axis: 4000 N
Ball screw X-axis: 32 x 10 mm
Ball screw Z-axis: 32 x 10 mm
Ball screw B-axis: 28 x 10 mm
Cross slide inclination: 30°

Guideway spacing X-axis: 255 mm
Guideway spacing Z-axis: 360 mm
Guideway distance counter spindle: 250 mm

Tool turret BMT 55 stations: 12
Driven tool stations: 12
Tool shank cross-section: 25 x 25 mm
Drilling tool holder: 40 / 20 mm
Max tool torque: 47 Nm
Tool speed: 50-5000 rpm
Max tool diameter drilling: 16 mm
Max tool diameter thread cutting: M12
Turret disk switching time, 1 tool station: 0.6 sec
Turret disk switching time, 1 revolution: 1.05 sec

C-axis rapid traverse: 200 rpm
C-axis max feed rate: 500 mm/min
C-axis smallest controllable angle: 0.001°
C-axis positioning accuracy: 0.0167°
C-axis repeatability: ±0.0060°

Counter spindle chuck diameter: 170 / 45 mm
Counter spindle nose: A2-5''
Counter spindle bore: 45 mm
Counter spindle clamping cylinder: 36 mm
Counter spindle drawbar: 35 mm
Counter spindle bearing diameter, front: 80 mm
Counter spindle max torque: 47 Nm
Counter spindle speed range: 60-6000 rpm
Counter spindle B-axis rapid traverse: 20 m/min
Counter spindle B-axis travel: 580 mm

Spindle height above floor: 1100 mm
Total connected load: 53 kVA
Supply voltage/frequency: 4 x 400/50
Machine footprint: 3118 x 1705 mm
Machine height: 2076 mm
Machine weight: 4900 kg

Included: Doosan CNC turning and milling center
Included: LNS Quick Load Servo III bar loader
Included: High-pressure pump and belt filter system
Included: Chip conveyor
Included: Complete operational documentation
