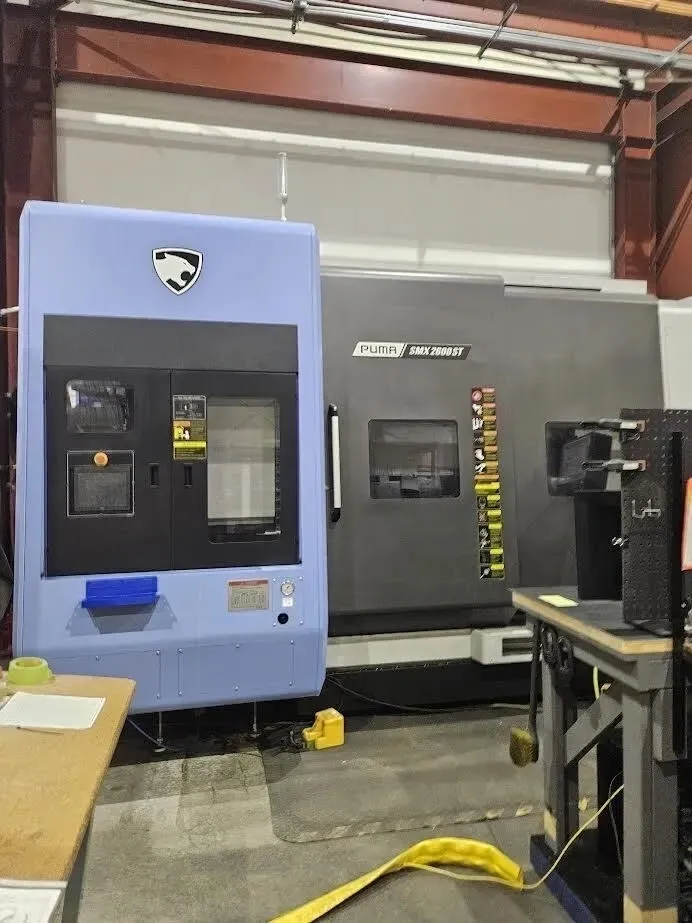

Doosan FANUC 31IB CNC Control 4,000 RPM DN SOLUTIONS SMX 2600ST 7 Axis

X1 Axis Travel: 27.4"
X2 Axis Travel: 60.6"
Z1 Axis Travel: 62.4"
Z2 Axis Travel: 60.6"
Y1 Axis Travel: 11.8"
Rapid Traverse X1: 1889 IPM
Rapid Traverse X2: 945 IPM
Rapid Traverse Z1: 1889 IPM
Rapid Traverse Z2: 1417 IPM
Rapid Traverse Y1: 1417 IPM
B-Axis Head Travel: 63.2"
B-Axis Head Indexing: -120°
C-Axis Indexing 1: 360°
C-Axis Indexing 2: 360°
Control: FANUC 31IB CNC Control
Scales
Auto Door
Tool Presetter
Chip Conveyor
Mist Collector
Turning Diameter: 10"
Turning Length: 60.6"
Bar Capacity 1: 3.6"
Bar Capacity 2: 3.6"
Swing Over Bed: 26"
Chuck Size 1: 10"
Spindle Nose 1: A2-8
Spindle Bore 1: 5.1"
Spindle Speed 1: 4,000 RPM
Spindle Motor 1: 40.2 HP
Chuck Size 2: 10"
Spindle Nose 2: A2-8
Spindle Bore 2: 5.1"
Spindle Speed 2: 4,000 RPM
Spindle Motor 2: 40.2 HP
Sub Spindle
B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Motor: 34.9 HP
Turret Tool Positions: 12 Station
Turret Rotary Tool Speed: 5,000 RPM
ATC Capacity: 80
Tool Diameter: 3.5" / 5.1"
Tool Length: 17.7"
Max Tool Weight: 26.5 lb
Machine Dimensions: 193" x 119" x 111"
Machine Weight: 39,683 lb
Less Than 400 Hours of Use
