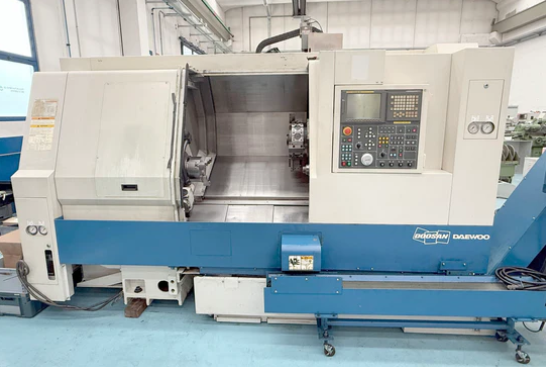

Doosan CNC CONTROL 4500 rpm PUMA 2000 LSY 4 Axis

Longitudinal travel (Z) 830 mm
Transversal travel (X) 250 mm
Transversal travel (Y) 100 mm (+50 / -50)
Rapid traverse X 20 m/min
Rapid traverse Y 7.5 m/min
Rapid traverse Z 24 m/min
C axis
Swing over bed 600 mm
Swing over carriage 550 mm
Max turning diameter 330 mm
Turning length 760 mm
Bar passage 65 mm
Spindle hole 86 mm
Clamping chuck diameter 255 mm
Spindle taper A2-6
Main spindle speed up to 4500 rpm
Back spindle max speed 6000 rpm
Back spindle power 5.5 / 7.5 kW
Driven tool spindle speed 6000 rpm
Driven tool power 2.2 / 3.7 kW
Milling units Capto C6
Spindle motor 11 / 15 kW
Turret type BMT 65P
Turret positions 12
Driven tools 12
Total power 85 kVA
Machine weight 5350 kg
Machine length 3500 mm
Machine width 1700 mm
Machine height 2060 mm
Voltage 400 V 50 Hz

Travelling steady hydraulic SLU 3.1 Ø20–165 mm
Coolant system 12 bar / 23 l/min
Paper filtration system
Y axis
Tool break control
Chip conveyor
Set of toolholders approx. 70× Capto C6
