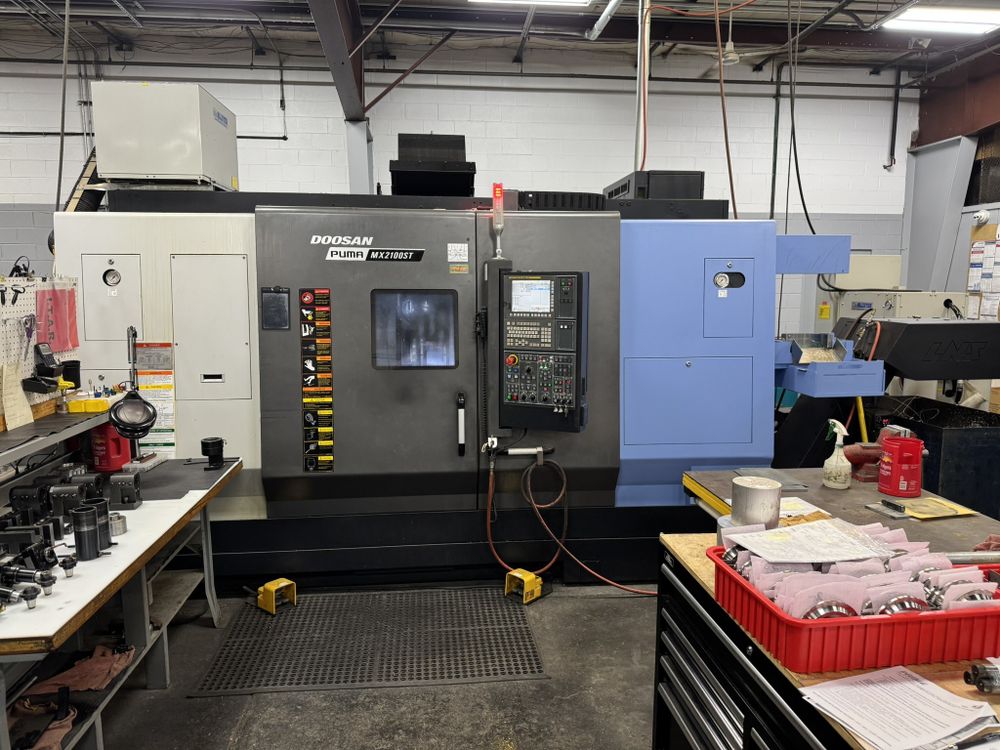

Doosan CNC CONTROL 5000 rpm PUMA MX-2100ST 7 Axis

Swing over bed: 29.5"
Swing over saddle: 25.6"
Recommended turning diameter: 8.3"
Maximum turning diameter: 21.3"
Maximum turning length: 40.2"
Chuck size: 8"
Bar working diameter: 2.6"

X1-axis travel: 22.2"
Z1-axis travel: 41.3"
Y-axis travel: 6.7"
X2-axis travel: 7.4"
Z2-axis travel: 41.3"
A-axis travel: 41.3"
B-axis rotation: ±120°

X1 rapid traverse rate: 36 m/min (1417.3 ipm)
Z1 rapid traverse rate: 36 m/min (1417.3 ipm)
Y rapid traverse rate: 26 m/min (1023.6 ipm)
X2 rapid traverse rate: 24 m/min (944.9 ipm)
Z2 rapid traverse rate: 36 m/min (1417.3 ipm)
A-axis rapid traverse rate: 30 m/min (1181.1 ipm)

Left spindle max speed: 5000 rpm
Left spindle nose: A2-6
Left spindle through hole: 3.0"
Left spindle indexing angle: 0.0001°
Left spindle motor: 30 HP

Right spindle max speed: 5000 rpm
Right spindle nose: A2-6
Right spindle through hole: 3.0"
Right spindle indexing angle: 0.001°
Right spindle motor: 30 HP

Milling spindle max speed: 12,000 rpm
Milling spindle indexing angle: 0.001°
Milling spindle motor: 25 HP

Tool storage capacity: 40
Tool changer: swing arm

Lower turret stations: 12
Lower turret max rotary tool speed: 5000 rpm
Lower turret spindle motor: 7.4 HP
Control: FANUC 31i Model B5, 5-Axis CNC
Tool setter
Parts unloader & conveyor
Chip conveyor
Mist collector
Through spindle coolant with high-pressure ChipBlaster
Chucks and collets for main and sub spindles
All available tooling
