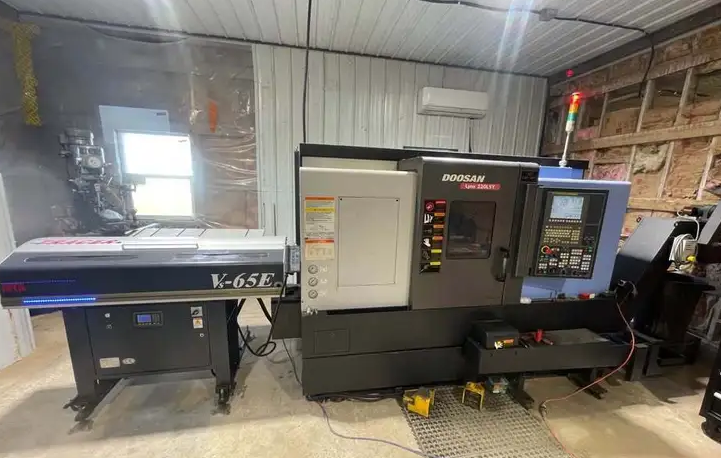

Doosan CNC (Fanuc 0i-TD) 6,000 RPM LYNX 220LSYC 5 Axis

X-Axis Travel: 8.07"
Y-Axis Travel: 5.12"
Z-Axis Travel: 22.0"
C-Axis: 360°
B-Axis: -30° to 190°

Control: CNC (Fanuc 0i-TD)
Swing over bed: 23.6"
Maximum turning diameter: 11.8"
Maximum work length: 20.1"
Bar Capacity: 2.6"
Chuck Size: 8"
Spindle Speed: 6,000 RPM
Spindle Motor Power: 20 hp
Spindle Nose: A2-6
Sub Spindle: Yes
Live Tooling: Yes
Number of Turret Stations: 12
Turret Index Positions: 24
Tool Holder Type: BMT 45
Turning Tool Shank Size: 0.75"
Boring Bar Diameter: 1.25"
Boring Bar Diameter, Sub Spindle: 0.75"
Turret Index Time: 0.11 sec
Tool Selection: Bi-directional
Turret Index Repeatability: ±0.0005°
X-Axis Rapid Traverse Rate: 1,181 IPM
Z-Axis Rapid Traverse Rate: 1,417 IPM
X-Axis Feed Thrust: 1,398 / 2,237 lbs
Z-Axis Feed Thrust: 1,589 / 2,542 lbs
X-Axis Repeatability: ±0.00008"
Z-Axis Repeatability: ±0.00012"
Hennig Chip Conveyor
Parts Catcher
Parts Conveyor
2 Radial Live Toolholders
1 Axial Live Toolholder
Tool Presetter
MTA V65E Barfeeder
Machine Weight: 8,708 lbs
Machine Dimensions: 106" x 61" x 67"
