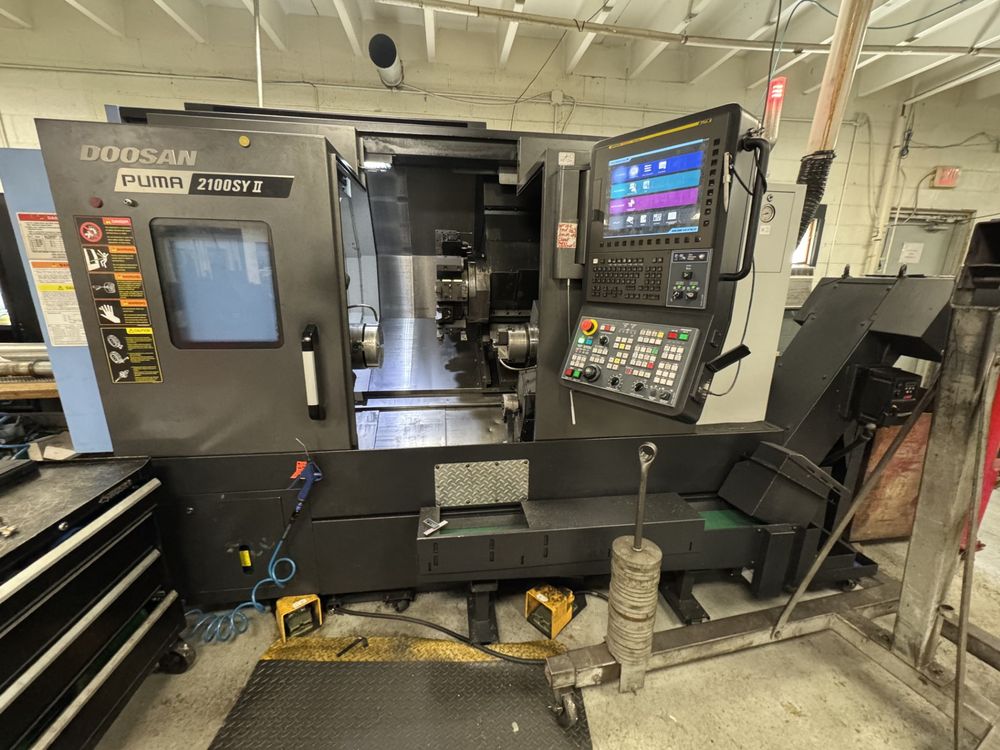

Doosan CNC (Fanuc Oi-Plus with iHMi Touch Screen) 5,000 rpm PUMA 2100SY-II 4 Axis

X-Axis Travel: 10.2"
Z-Axis Travel: 23.2"
Y-Axis Travel: 4.13" (±2.065")
C-Axis Main Spindle Minimum Programmable Angle: 0.001 deg
C-Axis Main Spindle Rapid Traverse Rate: 200 rpm
C-Axis Sub Spindle Minimum Programmable Angle: 0.001 deg
C-Axis Sub Spindle Rapid Traverse Rate: 200 rpm
C-Axis Sub Spindle Repeatability: ±0.006 deg
C-Axis Sub Spindle Positioning Accuracy: 0.0083 deg

Control: CNC (Fanuc Oi-Plus with iHMi Touch Screen)
Rotary Tools RPM: 5,000 rpm
Rotary Tools Spindle Motor: 7.5 hp
Rotary Tools Torque: 47.1 Nm
Rotary Tools Collet Type: ER 25
Milling Collet Capacity: 1/8 to 5/8"
Swing Over Bed: 30.7"
Swing Over Carriage: 24.8"
Maximum Turning Diameter: 15.98"
Maximum Turning Length: 20.47"
Distance Between Main and Sub Spindle Noses: 33.46"

Main Spindle Speed: 5,000 rpm
Main Spindle Nose: A2-6
Main Spindle Draw Tube ID: 2.68"
Main Spindle Bore Diameter: 2.99"
Main Spindle Motor: 30 hp
Main Spindle Maximum Torque: 264 ft-lb
Main Spindle Standard Chuck Size: 8"
Main Spindle Standard Chuck Through Hole ID: 2.59"

Sub Spindle Travel: 23.2"
Sub Spindle Guideway Span: 13.2"
Sub Spindle Speed: 6,000 rpm
Sub Spindle Nose: A2-5
Sub Spindle Draw Tube ID: 1.968"
Sub Spindle Bore Diameter: 2.44"
Sub Spindle Motor: 20 hp
Sub Spindle Maximum Torque: 98 ft-lb
Sub Spindle Standard Chuck Size: 6"
Sub Spindle Standard Chuck Through Hole ID: 2.047"

Turret Number of Tools: 12
Turret Number of Index Positions: 24
Turret Tool Holder Type: BMT-55
Turning Tool Shank Size: 1.0"
Boring Bar Diameter: 1.5"
Boring Bar Diameter Sub Spindle: 1.0"
Turret Index Time: 0.15 second
Turret Tool Selection: Bi-directional
Turret Curvic Coupling Diameter: 9.05"
Turret Clamping Force: 13,263 lb
Live Tooling: Yes
Live Milling Speed: 5,000 rpm
Live Milling Motor: 7.5 hp

Turret Stations: 12/24
Chuck Size Main Spindle: 8"
Chuck Size Sub Spindle: 6"
Machine Dimensions: 134.5" x 75"
Weight: 13,500 lbs
FANUC 0i-Plus Control with iHMi Touch Screen
Doosan EZ Guide i Conversational Programming
4 Live Holders (1 Right Angle, 1 Dual Sided Right Angle, 2 Straight)
Programmable Parts Catcher
Parts Conveyor with Barfeed Interface
Chip Conveyor
High Pressure Coolant
