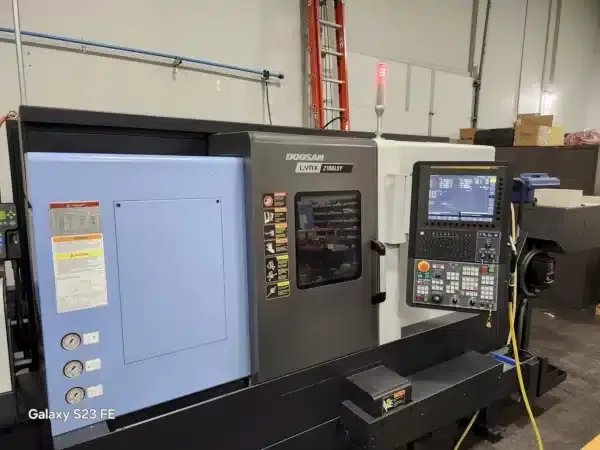

Doosan Control Doosan Fanuc i-Series 6000 rpm DN SOLUTIONS LYNX 2100LSYA 5 Axis

Traverses X-axis 205 mm (8.1 in)
Traverses Y-axis 105 ± 52.5 mm (4.1 ± 2.1 in)
Traverses Z-axis 560 mm (22 in)
Traverses B-axis 560 mm (22 in)
C-axis indexing full C
Rapid traverse X-axis 30 m/min (1181 in/min)
Rapid traverse Y-axis 10 m/min (394 in/min)
Rapid traverse Z-axis 36 m/min (1417 in/min)

Tool presetter
Multiple live radial/axial toolholders
Sub spindle
Collet chuck main and sub spindle
Work light
Chip conveyor
Part pick-off
Part conveyor
Coolant system
LNS Alpha SL65-S magazine barfeeder
Manuals
Bar capacity 61 mm (2.4 in)
Max turning diameter 300 mm (11.8 in)
Max turning length 510 mm (20.1 in)
Main spindle speed 6000 rpm
Main spindle motor 15 kW (20 HP)
Chuck size 6 in
Sub spindle speed 6000 rpm
Sub chuck size 5 in
Sub spindle motor 5.5 kW (7.5 HP)
Rotary tool speed 6000 rpm
Rotary tool power 3.7 kW (5 HP)
Rotary tool torque 24 Nm (17.3 ft-lbs)
Turret stations 12
Turret live tooling torque 46 Nm (34 ft-lbs)
Machine cutting hours 3118
Machine dimensions 2880 mm (113.4 in) x 1710 mm (67.5 in) x 1920 mm (76 in)
Machine weight 4150 kg (9150 lbs)
