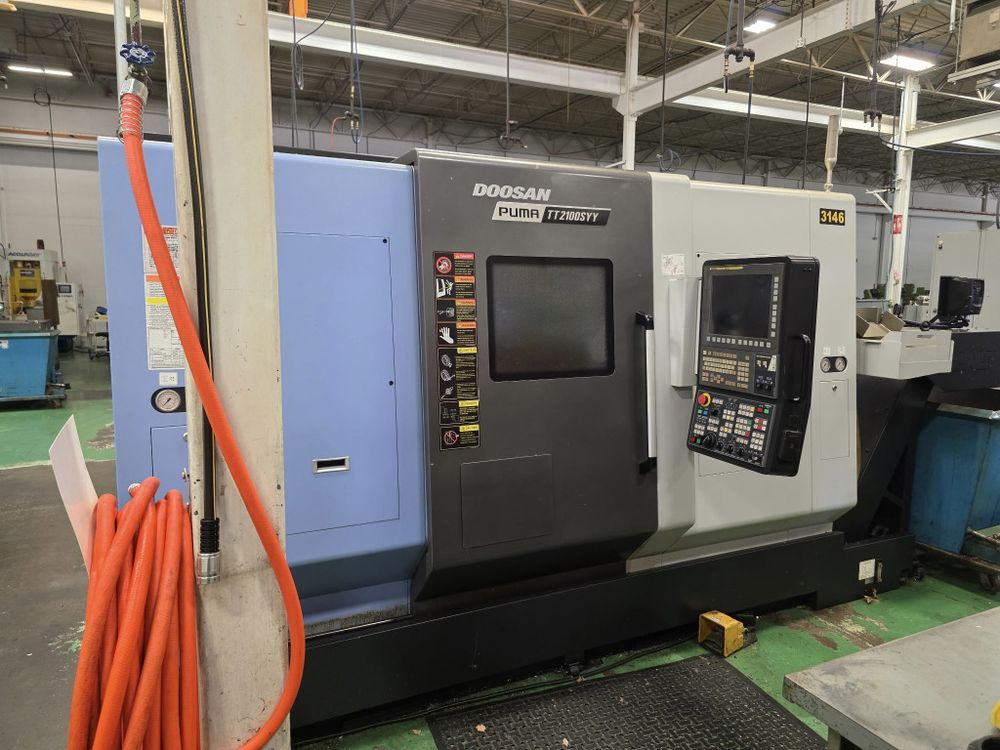

Doosan Control FANUC OiTF CNC Control 5,000 RPM PUMA TT2100SYY 4 Axis

Swing over bed 9.05"
Max cutting diameter 9.05"
Distance between centers 38.5"
X-axis travel 6.5"
Y-axis travel 3.93"
Z-axis travel 27.5"
C-axis indexing full contouring C-axis
Sub spindle W-axis travel 28.7"
Turret 2 X-axis travel 6.5"
Turret 2 Z-axis travel 27.56"
Control FANUC OiTF CNC Control
Doosan EZ Guide i Programming
Twin 12 position turrets upper and lower with 24 position indexing on each turret with base mount tooling system
Y-axis on both turrets
(2) integral spindles
Full contouring C-axes on both spindles
Mill/drill on upper and lower turrets
Parts catcher left and right
Programmable parts unloader
Parts conveyor
Bar feed interface
Doosan tool load monitoring system
Air blast system for chuck cleaning
Bar capacity 2.625"
Sub spindle bar capacity 2.56"
Spindle nose A2-6
Sub spindle spindle nose A2-6
Spindle motor 35 hp
Sub spindle spindle motor 25 hp
Spindle speed 5,000 RPM
Sub spindle spindle speed 5,000 RPM
Live milling speed 5,000 RPM
Live milling motor 10 hp
Rapid traverse rate X-axis 1,181 in/min
Rapid traverse rate Z-axis 1,575 in/min
Chuck size 8"
Sub spindle chuck size 8"
Turret capacity 12
Turret type BMT55
Turret 2 capacity 12
8" 3-jaw Kitagawa chuck for left and right spindles
(2) X-axis live holders
(2) Z-axis live holders
Standard factory static tooling
Dimensions 93" x 153" (with conveyor 186") x 88.6"H
Weight 20,940 lbs
