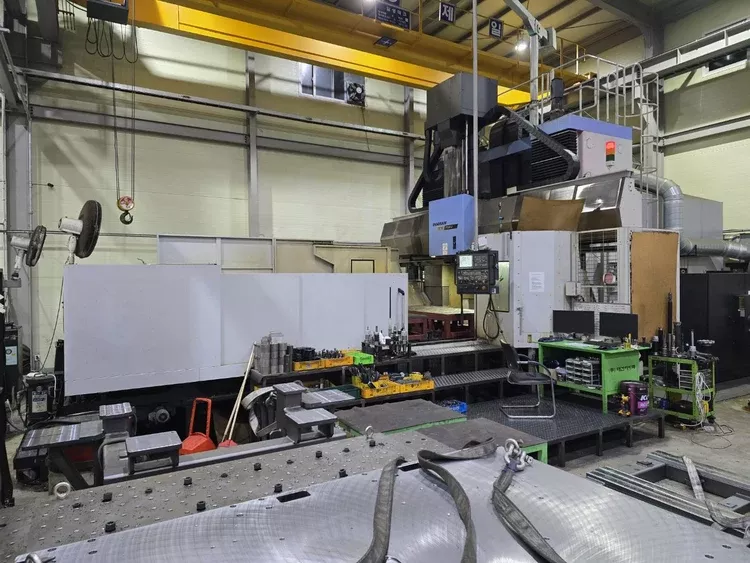

Doosan DCM 2750F II 5 Axis

DOOSAN DCM 2750F II
Year: 2018


Number Of Tables: 1
Table Size : 177.2" X 86.6"
Table Load Capacity: 55,000 LBS.
Distance Between Columns: 106.3"
Spindle Nose To Table: 64.9"
X - Axis Travel: 206.7"
Y - Axis Travel: 126"
Z - Axis Travel: 27.5"
W - Axis Positions: 43.3"
B - Axis Indexing: 0
C - Axis Indexing: 0
Rapid Traverse X, Y, Z: 630,630,394, 118 IPM
Cutting Feed Rate: 393 IPM
Spindle Speed: 6,000 RPM
Spindle Taper: 50
Number Of Gear Ranges: 2
Main Motor: 33 HP
Automatic Tool Changer: 60 ATC
Tool Diameter: 5.12", 9.84"
Tool Length: 15.75"
Tool Weight: 55.1 LBS.
Machine Weight: 127,866 LBS,

CHIP CONVEYOR
90 DEGREE ANGLE HEAD ( 1 DEGREE INDEXING )
SCALE FEEDBACK X, Y, Z, W AXIS
60 STATION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT 300 PSI
FANUC 31IB CNC COLOR CONTROL
RIGID TAPPING
PROGRAMMABLE COLUMN TRAVEL
