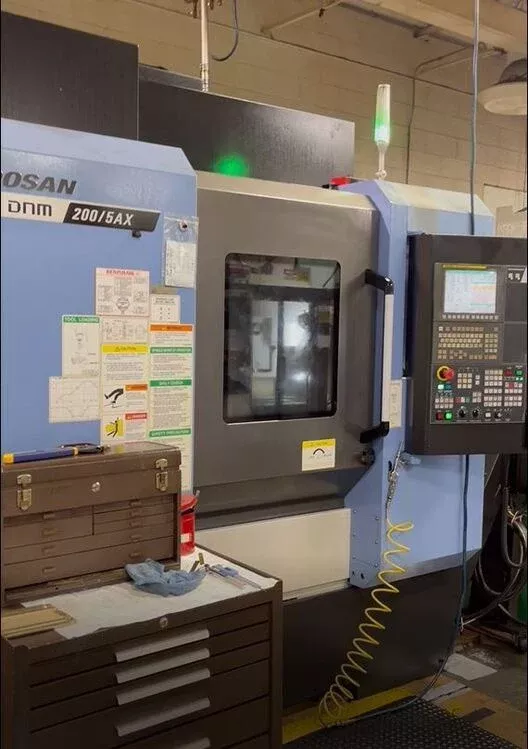

Doosan DNM 200/5AX 5 Axis

DOOSAN DNM 200/5AX
2015

Table Size: 7.9"
Number of Tables / Pallets: 1
Weight on Table: 132.3 lbs
Spindle Nose to Table: 1.2" – 20.9"

Travels:
X-Axis: 15.7"
Y-Axis: 17.1"
Z-Axis: 19.7"
A-Axis: +30° ~ -120°
B-Axis: 0
C-Axis Table Indexing: 360°

Spindle:
Speed Range: Up to 12,000 RPM
Taper: 40
Horsepower: 24.8 HP

Tool Changer:
Positions: 40 ATC
Tool Diameter Capacity: 2.9", 4.9"
Tool Length: 11.8"
Tool Weight: 17.6 lbs

Feed Rates:
Rapid Traverse: X=1417 IPM, Y=1417 IPM, Z=1181 IPM
Cutting Feed Rate: 590.6 IPM

Machine Weight: 12,100 lbs

Control & Features:
FANUC Series I CNC Color Control
1024 Block Look Ahead Speed
3D Tool Radius Compensation
Bell Shaped Acceleration/Deceleration Before Look Ahead Interpolation
Rigid Tapping
AICC-II
Tool Life Management
Embedded Ethernet Function
Memory Card Interface (I/C)
USB / Memory Card Slot
Tool Load Monitoring
Portable Handheld MPG
High Pressure Coolant Through Spindle
Renishaw Tool Probe
Spindle Chiller Unit
LNS Chip Conveyor
Cutoff Tool Holder Included
Raptor Workholding Vices
