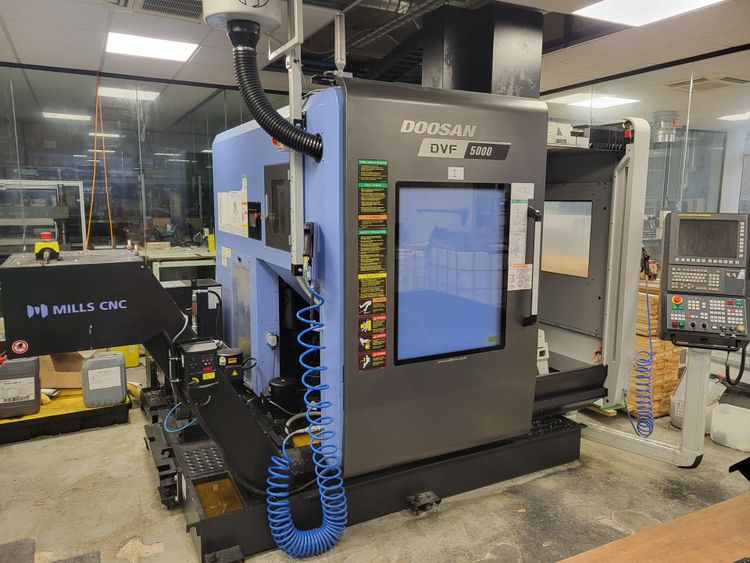

Doosan DVF5000 5 Axis

Travels X/Y/Z: 625 x 450 x 400 mm
B axis: -30 ~ +110 degrees
C axis: 360 degrees
Control: FANUC 31i Model B5
5 axis simultaneous
Coolant
Interlocked guards
Low voltage light
Swarf conveyor
Through spindle coolant
Tool setter
Spindle speed: 12000 rpm
Spindle motor power: 18.5/11 kW
Tool taper: BT40
Rapid feedrate: 40 m/minute
Tool change capacity: 30 station
Maximum tool diameter: 75 mm
Maximum tool diameter with empty adjacent pockets: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Table size: 500 x 450 mm
Maximum workpiece height: 450 mm
Maximum workpiece size: 550 mm
Maximum workpiece weight: 400 kg
Min - max height under spindle: 150 - 550 mm
Machine dimensions: 3415 x 2205 x 2890 mm
Machine weight: 7500 kg
