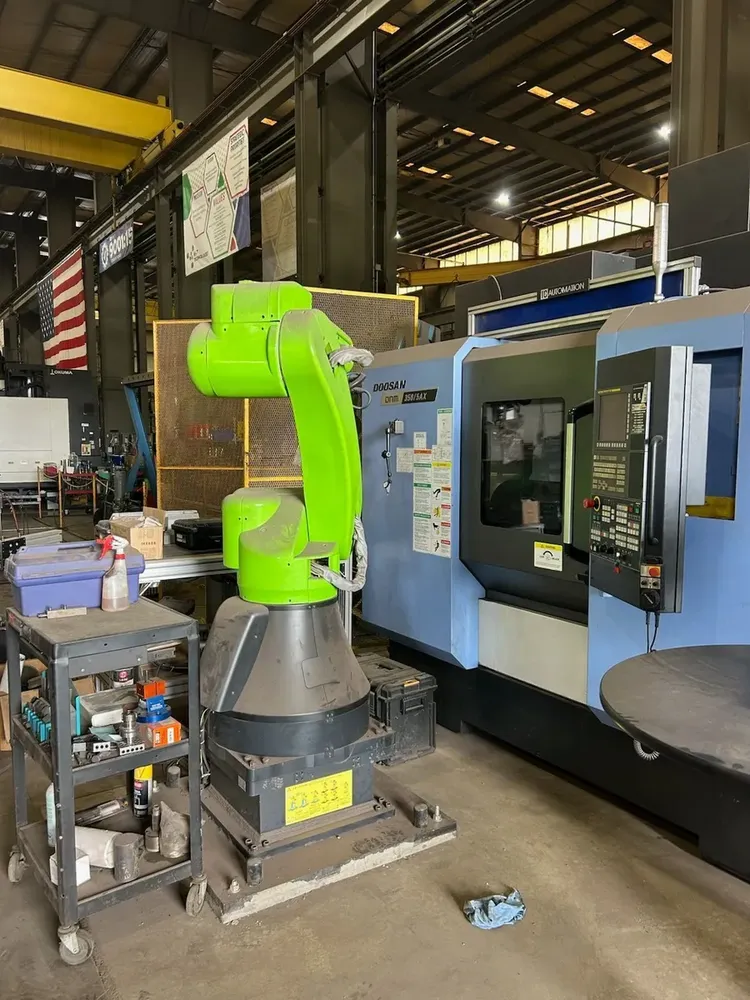

Doosan DNM 350/5AX 5 Axis

X-axis travel: 23.622"
Y-axis travel: 25.787"
Z-axis travel: 19.685"
A-axis: +30° to -120°
C-axis: 360°
Rapid traverse (X): 1,417 in/min
Rapid traverse (Y): 1,417 in/min
Rapid traverse (Z): 1,181 in/min
Control: Fanuc i-Series CNC
Simultaneous 5-axis machining
Coolant through spindle
Tool presetter
Renishaw probe
Spindle chiller unit
PCMCIA card slot
Thermal compensation
Spindle orientation
Helical interpolation
Rigid tapping
Coolant system
Table diameter: 13.8"
Table load capacity: 551.1 lb
Maximum workpiece diameter: 15.7"
Maximum workpiece height: 13.2"
Maximum spindle nose to table: 21.7"
Minimum spindle nose to table: 2"
Spindle taper: BIG PLUS CAT 40
Spindle power: 25 HP
Maximum spindle speed: 12,000 RPM
Automatic tool changer: 30 tools
Dimensions: 118" × 117" × 124"
Weight: 18,739 lb
Fanuc CR-35iA robot
Robot controller
137 cut hours
